- Model: Ultra V205
- Part Number: 4046180
- Water Removal: 205 Pints/Day
- Supply Voltage: 110-120V, 60 Hz
- Operating Temperature: 40°F Min., 104°F Max.
- Weight: 148 lbs

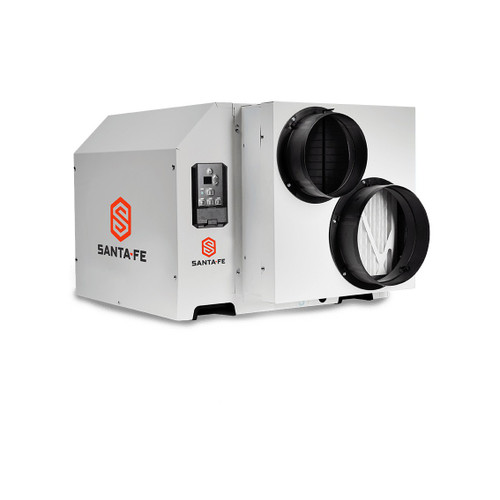

The Ultra V205 is the ideal solution for those seeking a high-performance, large capacity, efficient dehumidification system. Featuring patented multi-coil Efficiency Capacity Coil Optimization (ECCO™) technology that maximizes energy efficiency and capacity. The 8" ventilation duct allows for more outdoor air to help meet ASHRAE 62.2 requirements.
Click here to view more of Santa Fe Dehumidifiers
- High capacity water removal
- Onboard digital control
- Engineered for low temperature operation
- Terminal block control with 24V AC on-board power
- Dew point cut-out
- Use of DEH 3000/R digital control for outdoor air ventilation and humidity control
- Superior MERV-13 filtration to improve indoor air quality
- 8 inch ducting option for fresh outdoor air ventilation
- Corrosion resistant dual-coated coils
- Patented Efficiency Capacity Coil Optimization (ECCO™) technology
- New home
- Whole home
- Ventilation
- Commercial
Water Removal Rates(Pints/Day)
- @ 80°F and 60%RH - 205 Pints / 25.625 Gallons
- @ 73°F and 60%RH - 173 Pints / 21.6 Gallons
- Model: 4046180
PERFORMANCE
- Water Removal:
- @ 80°F and 60%RH - 205 Pints / 25.625 Gallons
- @ 73°F and 60%RH - 173 Pints / 21.6 Gallons
- Efficiency:
- 7.5 Pints/kWh
- 6.3 Pints/kWh
- Energy Factor:
- 3.5 L/kWh
- 3.0 L/kWh
- Blower (CFM):
- 550 @ 0.0" WC
- 515 @ 0.2" WC
- 470 @ 0.4" WC
- 430 @ 0.6" WC
- Ventilation (CFM):
- 215 @ 0.0" WC
- 200 @ 0.2" WC
- 183 @ 0.4" WC
- 167 @ 0.6" WC
- Operating Temperature: 40°F Min., 105°F Max.
- Fan: 260 Watts
- Sizing: Up to 5,000 Sq. Ft. / 50,000 Cu. Ft.
ELECTRICAL
- Power Cord: 10', 115 VAC, Ground
Plug Type B (USA, MEX, CAN, JPN) - Power: 1,115 watts @ 73°F and 60% RH
- Supply Voltage: 110-120V, 60 Hz
- Current Draw: 12.5 amps @ 104°F and 36% RH
- Circuit Requirement: 15 Amp Dedicated
SPECIFICATIONS
- Drain Connection: 3/4" Threaded Female NPT
- Duct Connections: 8" Round Inlet, 10" Round Inlet, 10" Round Outlet
- Refrigerant: R454B, 3 lbs.

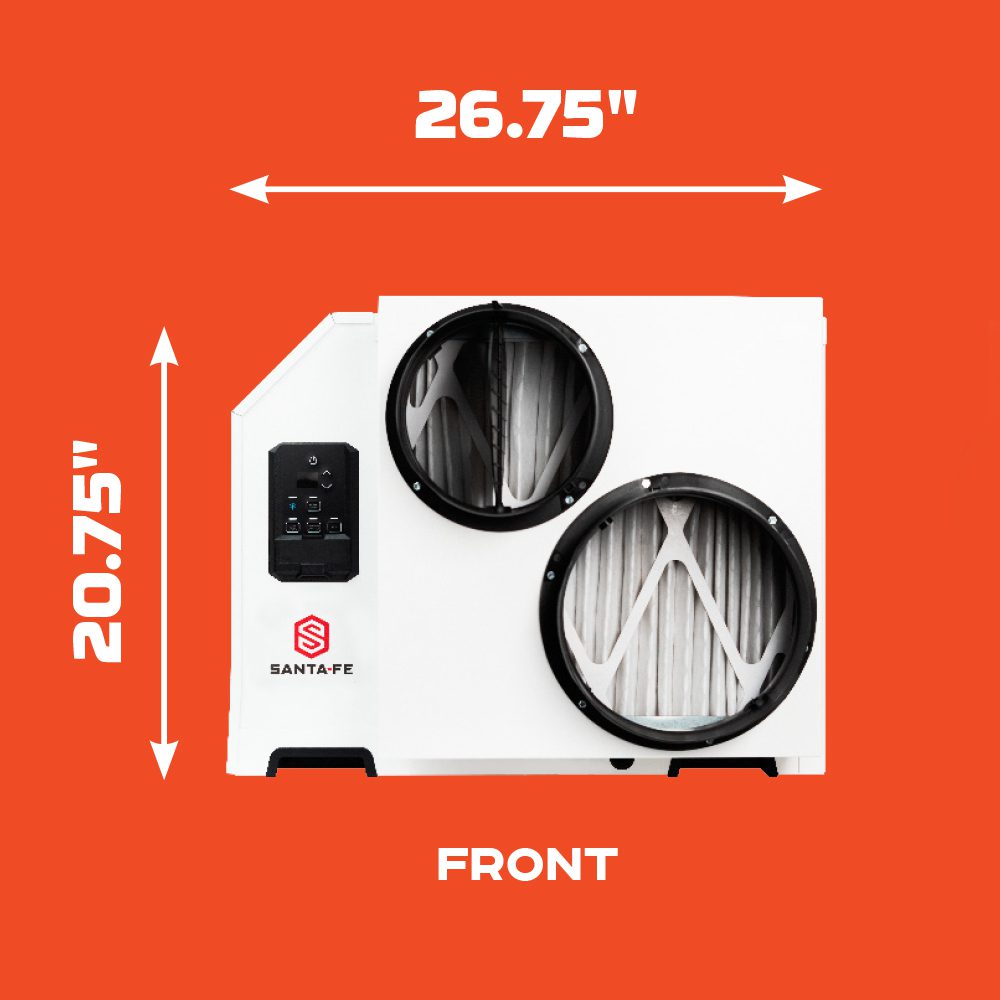

UNIT DIMENSIONS
- Width: 26.75"
- Height: 20.75"
- Depth: 38"
- Weight: 148 lbs.
SHIPPING
- Shipping Dimensions: 26"W x 21.2"H x 45.1"D
- Shipping Weight: 170 lbs.
- Pallet Quantity: 2 per pallet
- UPC Number: 00810017961788
- Shipping Options: UPS, LTL
