- Model: Ultra V100
- Part Number: 4047100
- Water Removal: 100 Pints/Day
- Supply Voltage: 115 volt - 1 phase - 60 Hz
- Operating Temperature: 34°F Min., 105°F Max.
- Weight: 101 lbs
The Ultra V100 is the ideal solution for those seeking a high-performance, large-capacity, efficient dehumidification system. The 8" ventilation duct allows for more outdoor air to help meet ASHRAE 62.2 requirements.
The Ultra V100 is a high-performance ventilating dehumidifier with vertical or horizontal airflow discharge. The unit provides high-efficiency water removal and features an 8" ventilation duct to increase outdoor air intake to help meet ASHRAE 62.2 requirements.
Click here to view more of Santa Fe Dehumidifiers
- High capacity water removal
- Onboard digital control
- Engineered for low temperature operation
- Terminal block control with 24V AC on-board power
- Dew point cut-out
- R2 cabinet insulation allows for quieter operation and reduces the risk of condensation forming on the exterior of the unit.
- Use of DEH 3000/R digital control for outdoor air ventilation and humidity control
- Use of SmartAire™ Remote Sensor for humidity control and SmartAire™ Power Damper for ventilation control
- Superior MERV-13 filtration to improve indoor air quality
- 8 inch ducting option for fresh outdoor air ventilation
- Secondary drain port for float switch
- Built-in handles for easy transport
- New home
- Whole home
- Ventilation
- Commercial
Water Removal Rates(Pints/Day)
- @ 80°F and 60%RH - 100 Pints / 12.6 Gallons
- @ 73°F and 60%RH - 82 Pints / 10.25 Gallons
- Model: 4047100
PERFORMANCE
- Water Removal:
- @ 80°F and 60%RH - 100 Pints / 12.6 Gallons
- @ 73°F and 60%RH - 82 Pints / 10.25 Gallons
- Efficiency:
- 6.4 Pints/kWh
- 5.55 Pints/kWh
- Energy Factor:
- 3.0 L/kWh
- 2.63 L/kWh
- Blower (CFM):
- 385 @ 0.0" WC
- 350 @ 0.2" WC
- 305 @ 0.4" WC
- 260 @ 0.6" WC
- Ventilation (CFM):
- 150 @ 0.0" WC
- 135 @ 0.2" WC
- 120 @ 0.4" WC
- 100 @ 0.6" WC
- Operating Temperature: 34°F Min., 105°F Max.
- Fan: 107 Watts
- Sizing: Up to 2,300 Sq. Ft. / 23,000 Cu. Ft.
ELECTRICAL
- Power Cord: 10', 115 VAC, Ground
Plug Type B (USA, MEX, CAN, JPN) - Power: 620 watts @ 73°F and 60% RH
- Supply Voltage: 115 volt – 1 phase – 60 Hz
- Current Draw: 8.0 amps @ 104°F and 36% RH
- Circuit Requirement: 15 Amp Dedicated
SPECIFICATIONS
- Drain Connection: 3/4" Threaded Female NPT
- Duct Connections: 8" Round Inlet, 10” Round Inlet, 10” Round Outlet
- Refrigerant: R454B, 34 oz

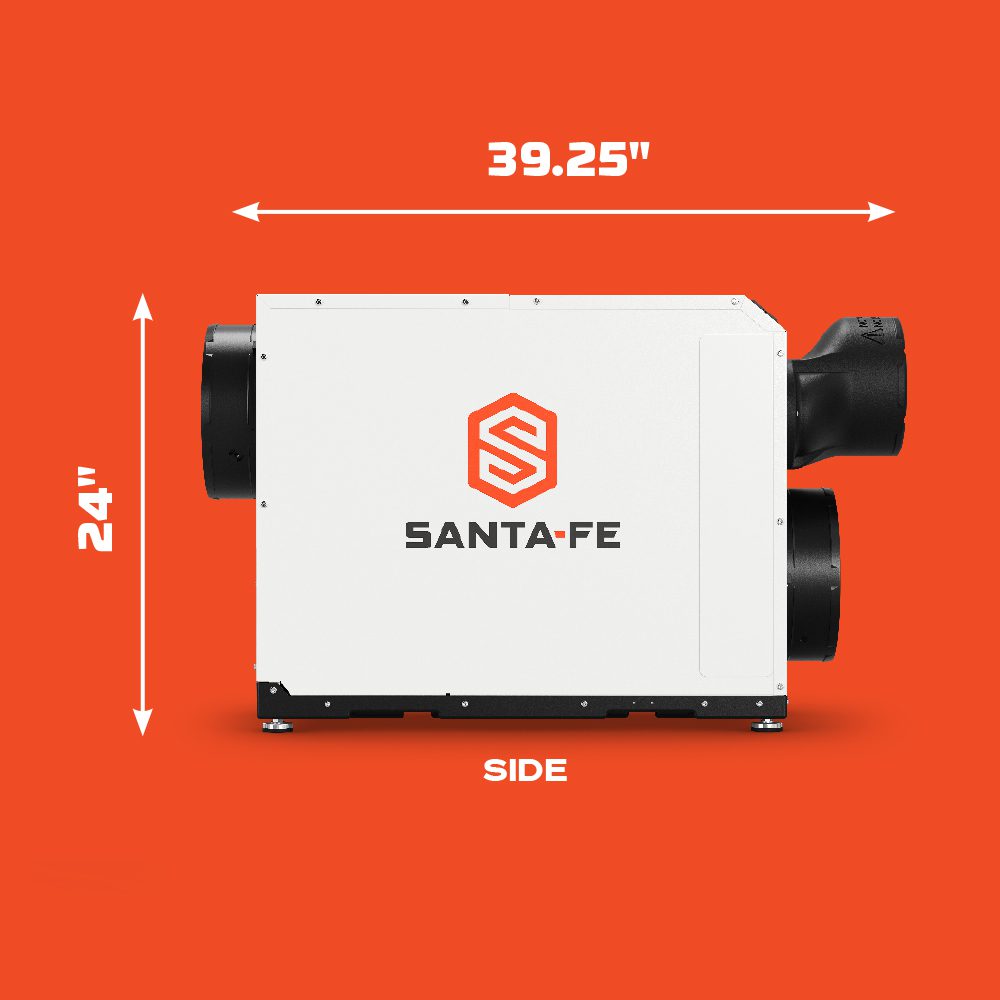

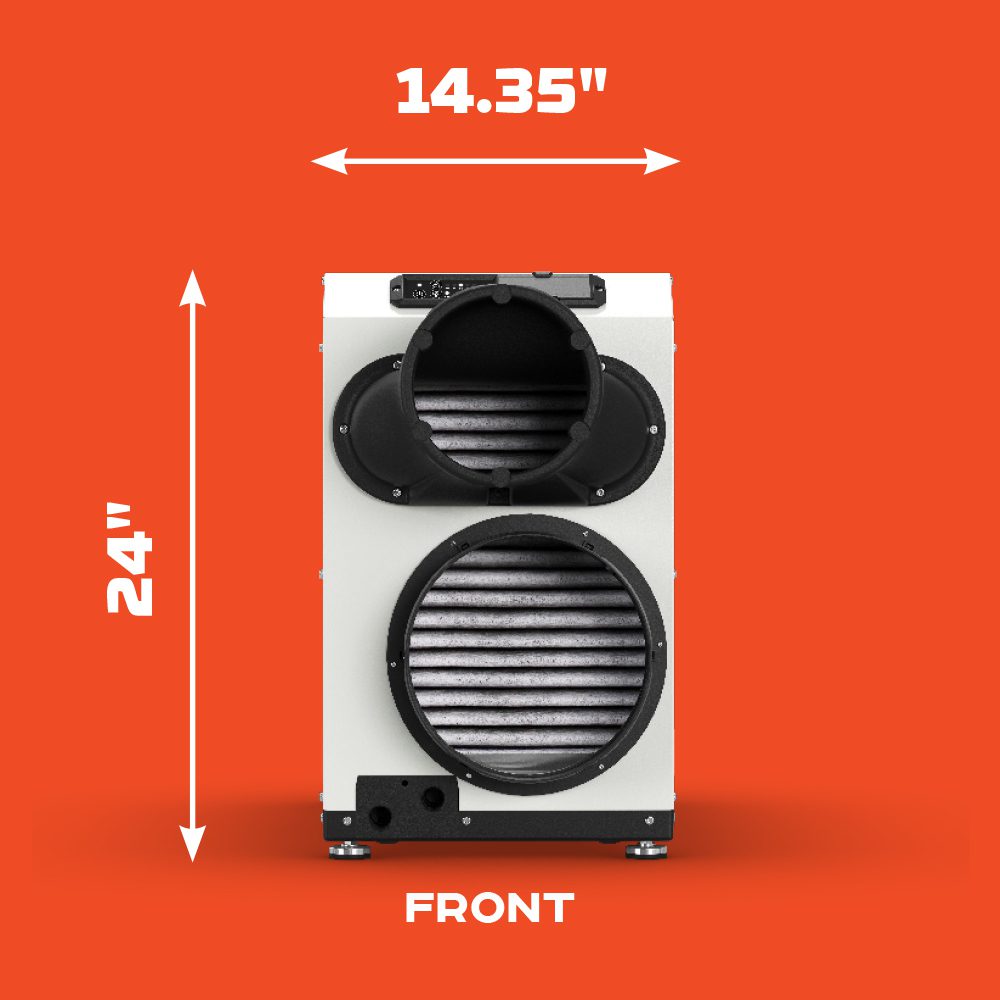

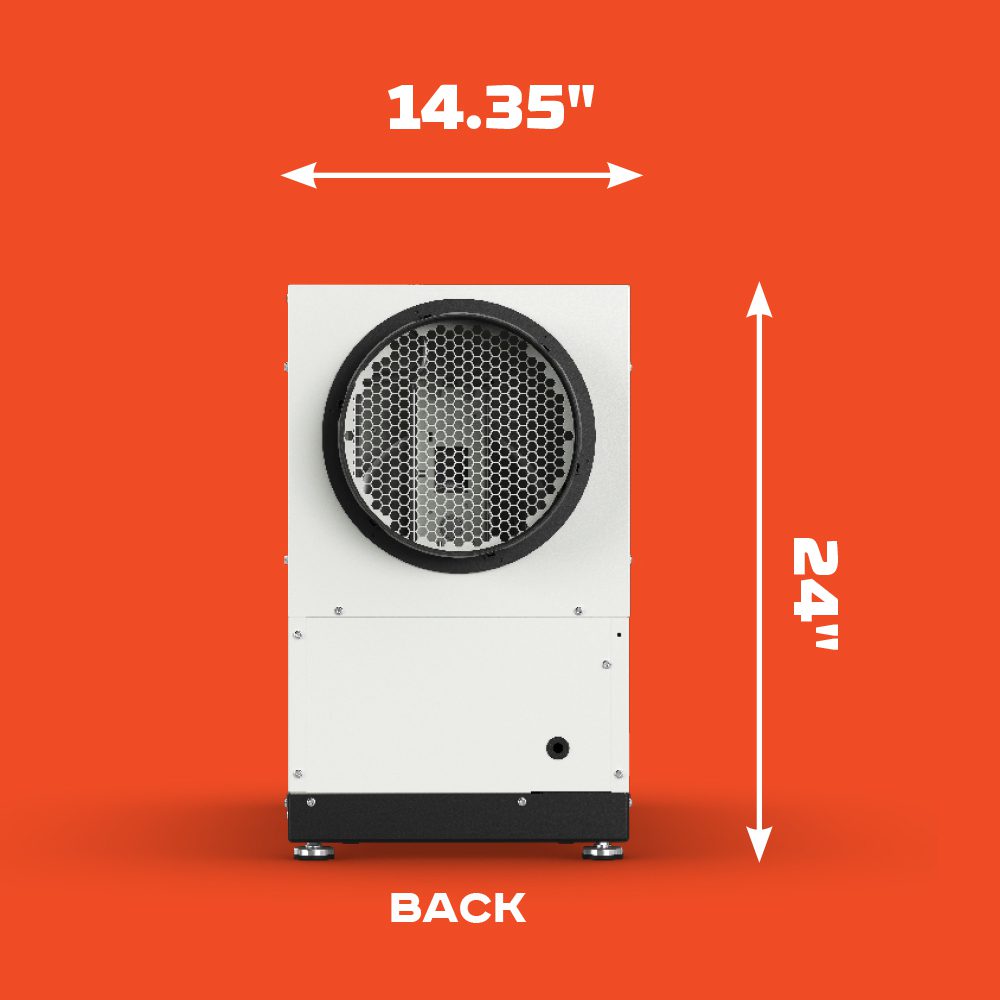

UNIT DIMENSIONS
- Width: 14.35"
- Height: 24"
- Depth: 39.25"
- Weight: 101 lbs.
SHIPPING
- Shipping Dimensions: 19.75"W x 28.25"H x 44.2"D
- Shipping Weight: 113 lbs.
- Pallet Quantity: 2 per pallet
- UPC Number: 00810017961917
- Shipping Options: UPS, LTL, FTL
