- Model: UltraMD33
- Part Number: 4044610
- Water Removal: 37 Pints Per Day (4.6 Gallons/Day)
- Blower: 150 CFM @ 0.0" WG
- Supply Voltage: 120 VAC – 1 phase – 60 Hz
- Temperature Range: 49°F Min., 95°F Max
- Weight: 39 lbs.
The Santa Fe UltraMD33 is the first true in-wall dehumidifier that features a slim profile.
The Santa-Fe UltraMD33 is Energy Star® rated and runs independent of the HVAC system, removing up to 37 pints of water a day. Sized for up to 1,200 square feet, the UltraMD33 is the perfect solution to control moisture in multi-family applications and features a digital RH control behind a tamper-proof cover.
The unit can be hardwired into existing electrical or directly plugged into a 110v outlet with the provided cord. Designed to drain directly into a hub-drain or plumbing line, the UltraMD33 is truly a hands-off dehumidification system.
Click here to view more of Ultra-Aire Dehumidifiers
- Designed for quiet operation.
- Washable air filter.
- Professional-grade, corrosion-resistant dual-coated coils.
- Ability to be hardwired into existing electrical or directly plugged into a 110v outlet.
- Designed to drain into a hub-drain or plumbing line.
- Internally mounted digital dehumidistat.
- Basements
- Crawl spaces
- Garages
- Home theaters
- Workshops
- Gun rooms
- Exercise rooms
- New home
- Whole home
- Commercial
- Apartments
Water Removal Rates(Pints/Day)
- @ 80°F and 60%RH - 37 Pints / 4.6 Gallons
- @ 65°F and 60%RH - 22 Pints / 2.75 Gallons
- Model: 4044610
PERFORMANCE
- Water Removal:
- @ 80°F and 60%RH - 37 Pints / 4.6 Gallons
- @ 65°F and 60%RH - 22 Pints / 2.75 Gallons
- Efficiency:
- 5.1 Pints/kWh
- 3.46 Pints/kWh
- Energy Factor:
- 2.4 L/kWh
- 1.64 L/kWh
- Blower: 150 CFM @ 0.0” WG
- Operating Temperature: 49°F Min., 95°F Max.
- Sizing Up to 1,200 Sq. Ft. / 12,000 Cu. Ft.
ELECTRICAL
- Power Cord: 10', 115 VAC, Ground
Plug Type B (USA, MEX, CAN, JPN) - Power: 260 watts @ 65°F and 60% RH
- Supply Voltage: 120 VAC – 1 phase – 60 Hz
- Current Draw: 2.2 amps @ 65°F and 60%RH
- Circuit Requirement: 15 Amps
SPECIFICATIONS
- Sound Rating: 46 dBA
- Drain Connection: 3/4" O.D.
- Drain Hose: 10' Condensate Hose (3/4” OD)
- Refrigerant: R454B, 7.2 oz.

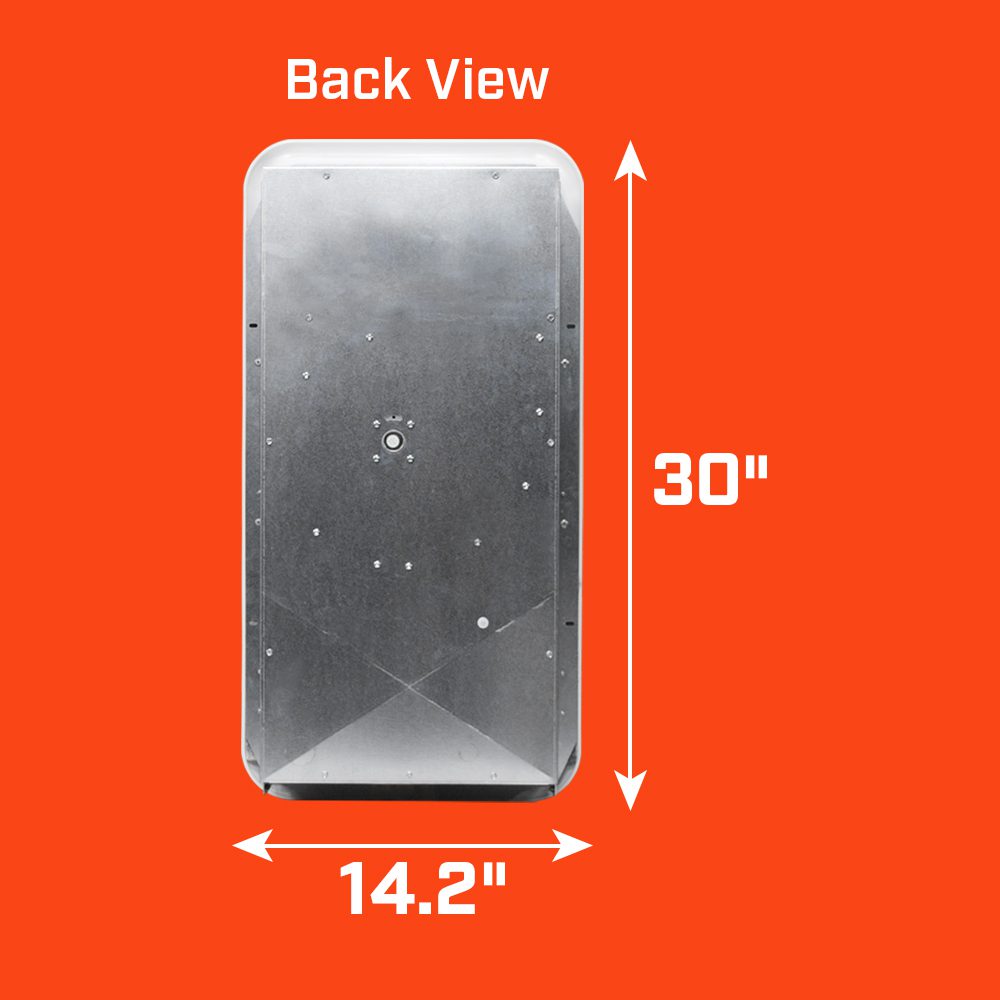

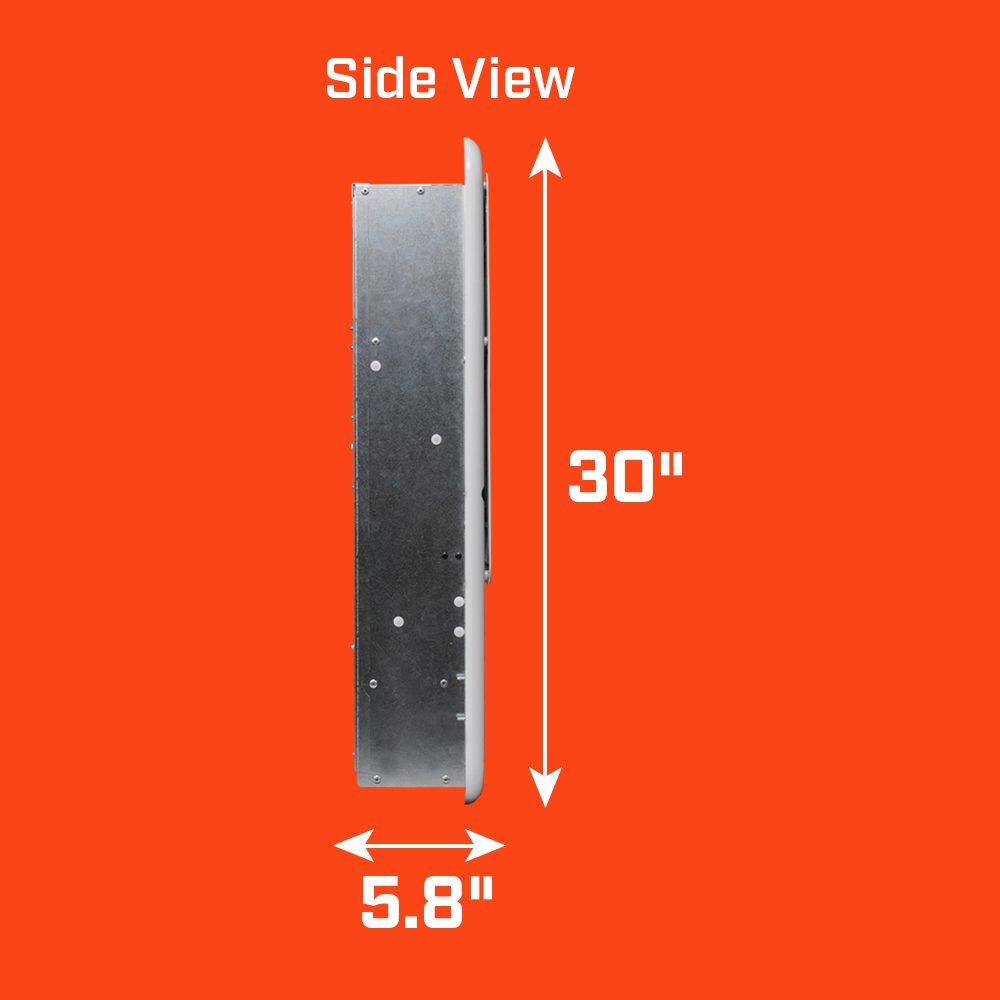

UNIT DIMENSIONS
- Width: 14.1875"
- Height: 30"
- Depth: 5.75"
- Weight: 39 lbs.
SHIPPING
- Shipping Dimensions: 20"W x 37"H x 11"D
- Shipping Weight: 57 lbs.
- Pallet Quantity: 8 per pallet
- UPC Number: 810017961702
- Shipping Options: UPS and LTL
