- Model: Ultra V155
- Part Number: 4047300
- Water Removal: 155 Pints/Day
- Supply Voltage: 115 volt - 1 phase - 60 Hz
- Operating Temperature: 34°F Min., 105°F Max.
- Weight: 112 lbs
The Ultra V155 is the ideal solution for those seeking a high-performance, large capacity, efficient dehumidification system. Featuring patented multi-coil Efficiency Capacity Coil Optimization (ECCO) technology that maximizes energy efficiency and capacity. The 8" ventilation duct allows for more outdoor air to help meet ASHRAE 62.2 requirements.
Click here to view more of Santa Fe Dehumidifiers
- High capacity water removal
- Onboard digital control
- Engineered for low temperature operation
- Terminal block control with 24V AC on-board power
- Dew point cut-out
- R2 cabinet insulation allows for quieter operation and reduces the risk of condensation forming on the exterior of the unit.
- Use of DEH 3000/R digital control for outdoor air ventilation and humidity control
- Use of SmartAire™ Remote Sensor for humidity control and SmartAire™ Power Damper for ventilation control
- Superior MERV-13 filtration to improve indoor air quality
- 8 inch ducting option for fresh outdoor air ventilation
- Secondary drain port for float switch
- Built-in handles for easy transport
- Patented Efficiency Capacity Coil Optimization (ECCO™) technology featuring corrosion resistant dual-coated coils
- New home
- Whole home
- Ventilation
- Commercial
Water Removal Rates(Pints/Day)
- @ 80°F and 60%RH - 155 Pints / 19.3 Gallons
- @ 73°F and 60%RH - 128 Pints / 16 Gallons
- Model: 4047300
PERFORMANCE
- Water Removal:
- @ 80°F and 60%RH - 155 Pints / 19.3 Gallons
- @ 73°F and 60%RH - 128 Pints / 16 Gallons
- Efficiency:
- 7.1 Pints/kWh
- 6.5 Pints/kWh
- Energy Factor:
- 3.35 L/kWh
- 2.9 L/kWh
- Blower (CFM):
- 435 @ 0.0" WC
- 395 @ 0.2" WC
- 360 @ 0.4" WC
- 322 @ 0.6" WC
- Ventilation (CFM):
- 170 @ 0.0" WC
- 154 @ 0.2" WC
- 140 @ 0.4" WC
- 125 @ 0.6" WC
- Operating Temperature: 34°F Min., 105°F Max.
- Fan: 132 Watts
- Sizing: Up to 3,500 Sq. Ft. / 35,000 Cu. Ft.
ELECTRICAL
- Power Cord: 10', 115 VAC, Ground
Plug Type B (USA, MEX, CAN, JPN) - Power: 810 watts @ 73°F and 60% RH
- Supply Voltage: 115 volt – 1 phase – 60 Hz
- Current Draw: 10 amps @ 104°F and 36% RH
- Circuit Requirement: 15 Amp
SPECIFICATIONS
- Drain Connection: 3/4" Threaded Female NPT

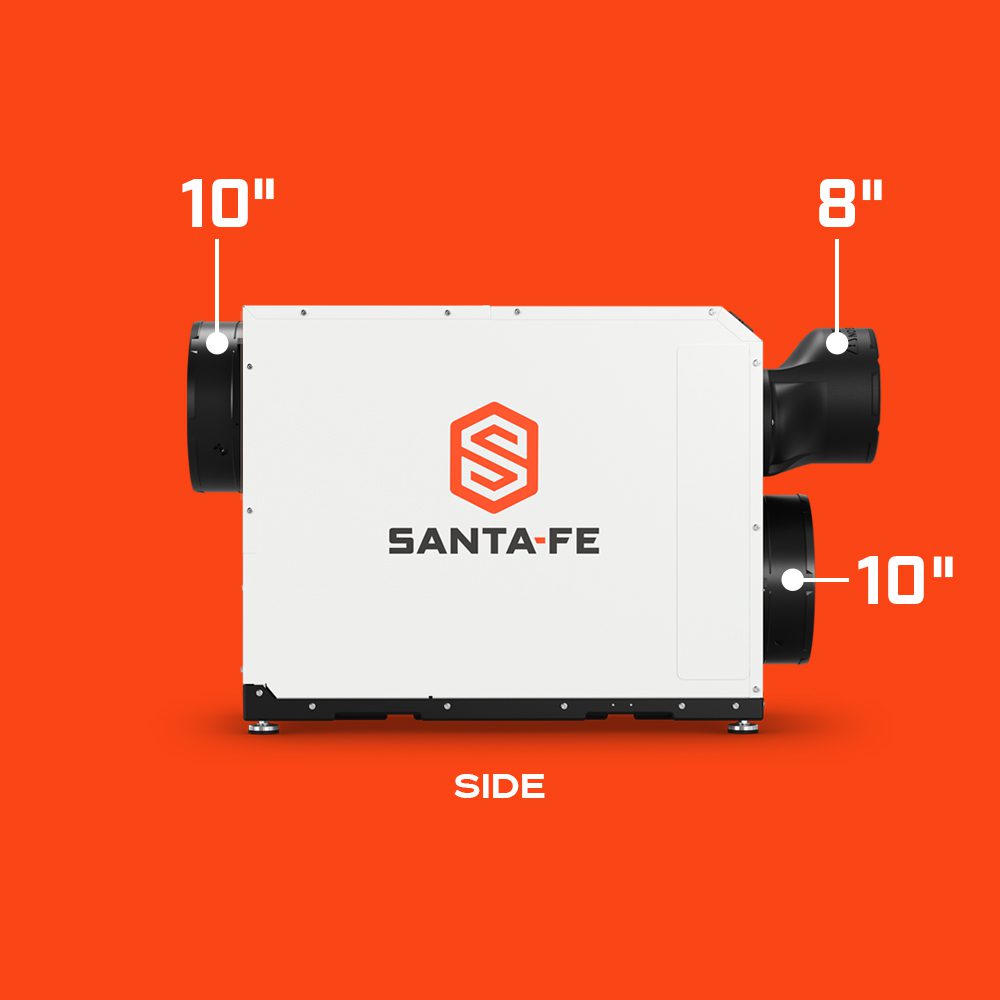

- Duct Connections: 8" Round Inlet, 10" Round Inlet, 10" Round Outlet
- Refrigerant: R454B, 36 oz
UNIT DIMENSIONS
- Width: 14.35"
- Height: 24"
- Depth: 39.25"
- Weight: 112 lbs.
SHIPPING
- Shipping Dimensions: 19.75"W x 28.25"H x 44.2"D
- Shipping Weight: 124 lbs.
- Pallet Quantity: 4 per pallet
- UPC Number: 00810017961795
- Shipping Options: UPS, LTL, FTL
