- Model: K8HP16BE
- Cooling capacity: 16,800 BTU/hr
- Heat capacity: 18,500 BTU/hr
- Voltage: 115/1
- Cooling Area (ft²): 430
- Refrigerant: R32

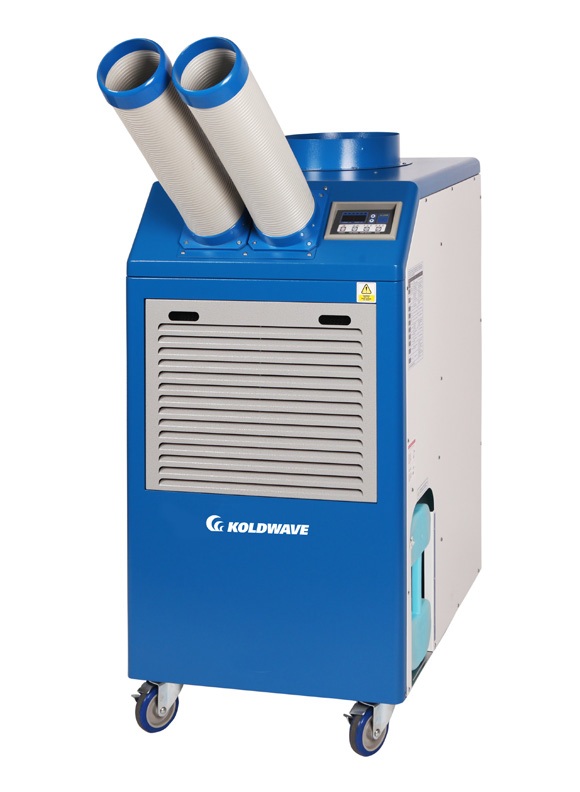

Koldwave Portable Heat Pump feature spot cooling/heating for large areas where cooling/heating of the entire area is not practical. A dedicated spot cooling/heating thermostat controls the unit in this application.
This unit can also be used in smaller areas for room cooling/ heating. A control panel provides ease of use and contains a self-diagnostic function and display, showing operating modes, room and set temperatures, and faults. If an abnormal operation occurs, a visual display of the fault is shown. Caster wheels are included for easy portability. Suitable applications include: a factory or work place, industrial kitchen, computer room, emergency cooling/heating, outdoor event, supplement cooling / heating etc
- View more of our Koldwave Air Cooled Portable Air Conditioners
- Spot Cool/Room Cool Thermostat Settings
- Internally Insulated with Fiberglass Insulation
- Thermostatic Control with Multi-Speed Fan
- Double Shaft Motor for Two Fans
- R-32 Refrigerant
- Approx. Cooling Area 430 sq. ft (40m²)
- 20 Amp Breaker
- Optional Easy Install Condensate Pump Kit with Overflow Protection
- Directional Nozzles (2)
- Heavy Duty Twin Wheel Casters for Portability
- 115V/1 Phase/60 Hz
- Auto Fan Speed Option
- Self-Diagnostic Function
- Off-Timer
- Washable Filters
- 12" (305mm) Hot Air Exhaust Flange
Safety Devices
- Compressor Overload Protection
- Anti-freezing Thermistor
- Full Drain Tank Switch
- Automatic Restart (Power Interruption)
- Compressor Time Delay Program
- High Pressure Switch
- Low pressure sensor
- Model: K8HP16BE
- Cooling Capacity (BTU/hr): 16,800
- Heating Capacity (BTU/hr): 18,500
- Power Supply (Voltage): Single Phase, 115V, 60Hz
- Power Consumption (W)
- 1,440 W (Cooling)
- 1,390 W (Heating)
- Rated Current (A)
- 12.8 A (Cooling)
- 12.3 A (Heating
- EER Btu/Wh:
- 11.7 (Cooling)
- 13.3 (Heating)
- Nema Plug: 5-20P
- Power Cord Guage (AWG): 12
- Power Cord Length (ft.): 6
- No. of Cool Air Outlets Pcs: 2
- Condensate Tank: 3.96 (15)
- Ambient Temperature Range (°F):
- Cooling 64-113 (18-45)
- Heating 56-80 (12-27)
- Application Area (Room cool mode) ft² (m²): 355 (33)
- Refrigerant Type: R32 / 31.7 (900)
- Design Pressure - Hi/Low Psig: 460 / 250
- Indoor Air Flow (High/Low) CFM(CMM): H:470 (13.3)
- Wheels pcs / Diameter: 4 / 76 mm
- Hot Air Duct Diameter In. (mm): 12 (300)
- Maximum Duct Length ft (m): 50 (15)
Dimensional Data
- Product (Width x Depth x Height): 24.1" x 30.2" x 40.9"
- Weight (Net): 229.3 lbs.
- Shipping Dimensions (Width x Depth x Height): 32" x 26" x 60"
- Shipping Weight: 280 lbs.
- Free phone technical support
- 2-year parts-only warranty
- 3-year compressor warranty
