- Model: K9HP13BE
- Cooling capacity: 13,200 BTU/hr
- Heat capacity: 14,300 BTU/hr
- Voltage: 115/1
- Cooling Area (ft²): 338
- Refrigerant: R32

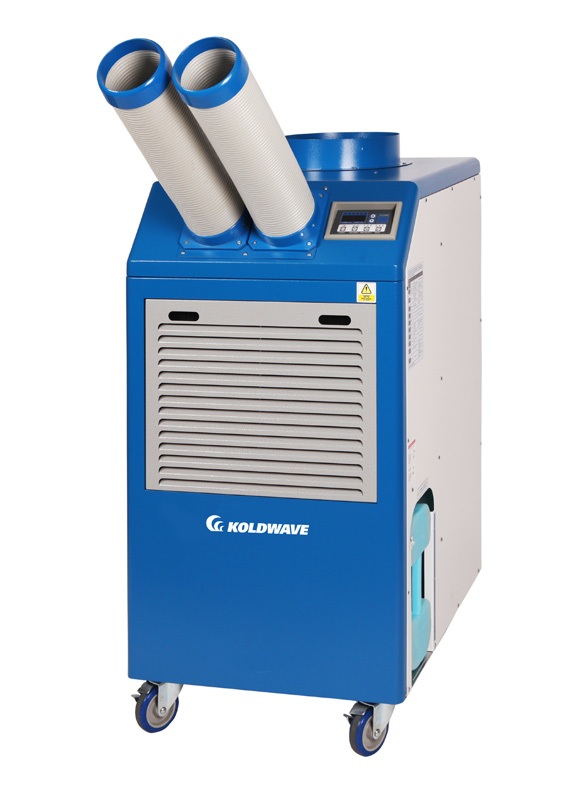

Koldwave Portable Heat Pump feature spot cooling/heating for large areas where cooling/heating of the entire area is not practical. A dedicated spot cooling/heating thermostat controls the unit in this application.
This unit can also be used in smaller areas for room cooling/ heating. A control panel provides ease of use and contains a self-diagnostic function and display, showing operating modes, room and set temperatures, and faults. If an abnormal operation occurs, a visual display of the fault is shown. Caster wheels are included for easy portability. Suitable applications include: a factory or work place, industrial kitchen, computer room, emergency cooling/heating, outdoor event, supplement cooling / heating etc
- View more of our Koldwave Air Cooled Portable Air Conditioners
- Spot Cool/Room Cool Thermostat Settings
- Internally Insulated with Fiberglass Insulation
- Thermostatic Control with Multi-Speed Fan
- Double Shaft Motor for Two Fans
- R-32 Refrigerant
- Approx. Cooling Area 338 sq. ft (31.4m²) (9HP13)
- 15 Amp Breaker (9HP13)
- Optional Easy Install Condensate Pump Kit with Overflow Protection
- Directional Nozzles (2)
- Heavy Duty Twin Wheel Casters for Portability
- 115V/1 Phase/60 Hz
- Auto Fan Speed Option
- Self-Diagnostic Function
- Off-Timer
- Washable Filters
- 12" (305mm) Hot Air Exhaust Flange
Safety Devices
- Compressor Overload Protection
- Anti-freezing Thermistor
- Full Drain Tank Switch
- Automatic Restart (Power Interruption)
- Compressor Time Delay Program
- High Pressure Switch
- Low pressure sensor
- Model: K9HP13BE
- Cooling Capacity (BTU/hr): 13,200
- Heating Capacity (BTU/hr): 14,300
- Power Supply (Voltage): Single Phase, 115V, 60Hz
- Power Consumption (W)
- 1,130 W (Cooling)
- 1,040 W (Heating)
- Rated Current (A)
- 9.97 A (Cooling)
- 9.21 A (Heating
- EER Btu/Wh:
- 11.68 (Cooling)
- 13.72(Heating)
- Power Cord Guage (AWG): 12
- Power Cord Length (ft.): 6
- Condensate Tank: 3.96 (15)
- Ambient Temperature Range (°F):
- Cooling 64-113 (18-45)
- Heating 56-80 (12-27)
- Application Area (Room cool mode) ft² (m²): 338 (31)
- Refrigerant Type: R32 / 32.3 (917)
- Design Pressure - Hi/Low Psig: 450 / 250
- Wheels pcs / Diameter: 4 / 76 mm
- Hot Air Duct Diameter In. (mm): 12 (300)
- Maximum Duct Length ft (m): 50 (15)
Dimensional Data
- Product (Width x Depth x Height): 20.6" x 26.4" x 41.1"
- Weight (Net): 185.2 lbs.
- Shipping Dimensions (Width x Depth x Height): 30" x 28" x 47"
- Shipping Weight: 233 lbs.
- Free phone technical support
- 2-year parts-only warranty
- 3-year compressor warranty
