- Tech Specs
- Model: DIY-18-HP-230AE
- COOLING CAPACITY: 18,000 BTU
- HEATING CAPACITY: 18,000 BTU
- EFFICIENCY: 16 SEER
- VOLTAGE: 208/230/1
- COOL AREA (SQ. FT.): 600
A MRCOOL DIY 18k Enahanced Series heat pump is the only ductless mini-split system on the market explicitly designed for amateur installation. You don't need special tools or training to install this high efficiency heat pump. The line sets pre-charged with R410A refrigerant, the quick hook-up electrical connections, and the quality engineering mean just about anyone can install a MRCOOL DIY in their home with no problem at all in only a few short hours. If you want great air comfort without paying an arm and a leg for installation, you want an easy-to-use MRCOOL DIY Series ductless heat pump..
- Cooling: 18,000 BTU
- Heating: 18,000 BTU
- SEER: 16
- EER: 9
- Voltage: 208/230/1
- Min Circuit Ampacity: 15 A
- Refrigerant Type: R410A
- Low Ambient Cooling: 5°F

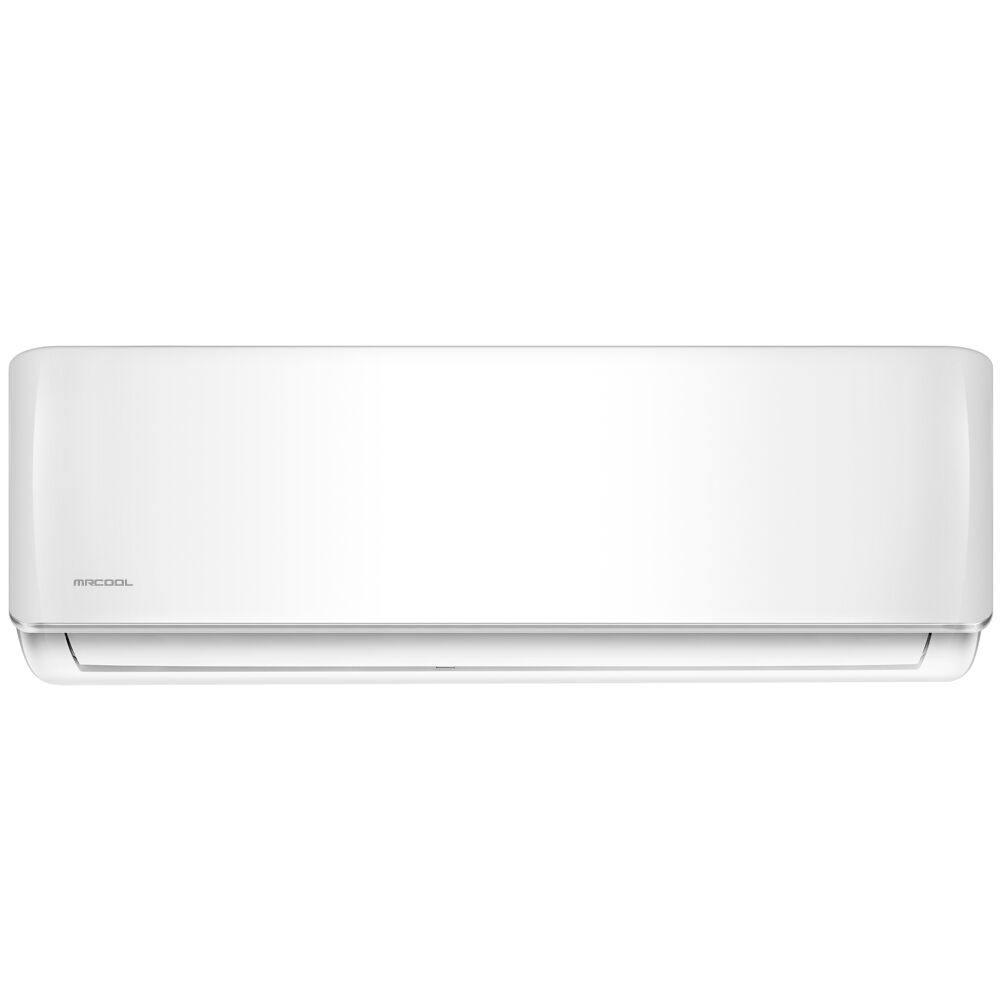

- Indoor Unit: DIY-18-HP-WMAH-230AE
- Net Dimensions (H x W x D): 12.56" x 37.99" x 8.46"
- Net Weight: 26 lbs
- Packing Dimensions (H x W x D): 18" x 48" x 18"
- Gross Weight: 65 lbs
- Outdoor Unit: DIY-18-HP-C-230AE
- Net Dimensions (H x W x D): 21.81" x 31.5" x 13.11"
- Net Weight: 80.5 lbs
- Packing Dimensions (H x W x D): 32" x 38" x 19"
- Gross Weight: 110 lbs
- Lineset: 25 ft
- Liquid Line Fitting: 3/8"
- Liquid Line Size: 1/4"
- Suction Line Fitting: 5/8"
- Suction Line Size: 1/2"
- Easy DIY® Installation (Precharged 410 Quick Connect® Lineset): The included 25′ pre-charged lineset allows you to install this innovative ductless system without special tools, equipment, or training.
- Smartphone App (Enhanced Control from Anywhere): Control your MRCOOL DIY® anywhere with your Apple or Android smart device and an internet connection.
- Follow Me® Function (Personalized Performance): Keep the remote close by, and MRCOOL DIY® will track the air temperature around you to ensure you receive maximum comfort.
- Leakage Detection (Protecting Your Investment): When the MRCOOL DIY® detects low coolant an alarm will sound to alert you to the problem. This will prevent damage to the compressor while you maintain high air comfort.
- Low Ambient Cooling (Cooling down to 5°F): This feature makes the MRCOOL DIY® the ideal system for server rooms, greenhouses, and any other application that requires cooling all year.
- Auto Restart (Never Lift a Finger): Power outage? Don’t worry, the MRCOOL DIY® auto restart will have the unit running again in no time at all.
- Sleep Mode (24-Hour Comfort): We made Sleep Mode easy to program to save money, and let you sleep a little easier.
- Louver Position Memory (Remembers So You Don’t Have To): Horizontal louver will automatically move to the same position as you set last time the unit was turned on.
- Gold Fin® Condenser (Corrosion Resistant): Live on the coast? Don’t worry, our condenser is built to resist long term corrosion.
- Digital Assistant Ready (Google Assistant & Amazon Alexa): The new MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
