- Model: DIY-09-HP-WMAH-115D25-O & DIY-09-HP-C-115D25-O
- COOLING CAPACITY: 9,000 BTU
- HEATING CAPACITY: 10,000 BTU
- EFFICIENCY: 23.6 SEER
- VOLTAGE: 115V/1
- COOL AREA (SQ. FT.): Up to 400
Installing an HVAC system yourself might seem impossible, but the 5th Generation MRCOOL® DIY® 9k BTU 23.6 SEER Ductless Heat Pump Single Zone Mini-Split Condenser is designed for exactly that. With no special tools or experience required, this system can heat or cool spaces between up to 350 sq. ft. The pre-charged 25-foot QuickConnect® line set makes installation safe, simple, and cost-effective. Pre-filled with R-454B refrigerant, it eliminates the need for vacuuming. The included DIYPRO® cable replaces the need for electrical conduit, offering added durability against weather, animals, and yardwork tools. You can control the system using the included remote, the SmartHVAC app on Apple or Android devices, or voice commands via Amazon Alexa and Google Assistant. For coastal homes, the Gold Fin Condenser provides superior corrosion resistance, ensuring long-lasting performance. This system offers multiple modes and features to enhance comfort and efficiency. The Timer function helps reduce energy use, while Auto mode maintains your set temperature effortlessly. After a power outage, the system automatically restores previous settings. The anti-mildew function prevents mold by reducing excess condensation in the air handler. Backed by an industry-leading warranty, the 5th Generation MRCOOL® DIY® 9k BTU 23.6 SEER Ductless Heat Pump Single Zone Mini-Split Condenser now includes a limited lifetime warranty, along with a 7-year compressor and 5-year parts warranty. With innovative technology, easy installation, and reliable performance, this system is built to deliver comfort and peace of mind.
The new 5th Generation MRCOOL® DIY® 9K BTU Ductless Heat Pump Single Zone Mini-Split Air Handler. Designed for an easy and hassle-free installation, this system requires no special tools or prior experience and effectively heats or cools spaces up to 400 sq. ft. The pre-charged 25-foot DIY® QuickConnect® line set, which is pre-charged with R-454B refrigerant, eliminates the need for vacuuming, making installation faster, easier, and more cost-effective. The included DIYPRO® cable removes the need for electrical conduit, offering added durability against the outdoor elements and wildlife. Control is effortless with multiple options, including the wireless remote, the SmartHVAC app for Apple and Android devices, and hands-free voice commands via Amazon Alexa and Google Assistant. The Gold Fin® Condenser provides superior corrosion resistance for coastal homes, ensuring long-lasting performance in harsh conditions. Designed for both comfort and efficiency, the system's wireless remote features the innovative Follow Me function, which allows the air handler to adjust airflow temperature based on the remote's location, maintaining consistent comfort throughout the room. Additionally, Dry Mode helps reduce humidity by acting as a dehumidifier, removing excess condensation. Backed by an industry-leading warranty—including a limited lifetime warranty, a 7-year compressor warranty, and a 5-year parts warranty—the 5th Generation MRCOOL® DIY® 9K BTU Ductless Heat Pump Single Zone Mini-Split Air Handler is built for lasting reliability. Enjoy advanced technology, simple installation, and year-round comfort with confidence.
General
- Cooling: 9,000 BTU
- Heating: 10,000 BTU
- Max Coverage Area: Up to 400 sqft
- SEER: 23.6
- EER2: 14
- HSPF: HSPF4/HSPF5 : 11.5/8.6
- Zone Capacity: 1
- Voltage 115V/1
- Min Circuit Ampacity: 18 A
- Max Fuse Breaker (A): 20/15
- Min Circuit Ampacity (A): 18/3
- Refrigerant Type: R-454B
- Refrigerant Volume: 30.34 oz
- Decibel Rating: 18/43/54
- Oscillation: Yes
- Inverter: DC
- Mount Type: Wall
- Fan Only Option: Yes
- Number Of Speeds: 5
- Filter Type: Reusable
- Compressor Motor Type: Rotary
- Quiet Mode: Yes
- Auto Cool: Yes
- WiFi Compatibility: Yes
- APP Compatibility: Yes
- Works wITH IOS: Yes
- Works with Android: Yes
- UL Listed: Yes
- ETL Listed: Yes
- Remote Control Included: Yes
- Refrigerant Volume (Oz): 30.34
- Energy Star Certified: Yes
- AHRI Certified: Yes
- Registered Warranty: Extended Limited Lifetime*
- Base Parts Warranty: 5
- Base Compressor Warranty: 7
- Has Batteries: Yes
- Contains Electronics: Yes
- Contains Chemicals: Yes
- Contains Aerosol: Yes
- Contains Compressed Gas: Yes
- Proposition 65 Warning: Yes
Indoor Unit
- Indoor Unit: DIY-09-HP-WMAH-115D25-O
- GTIN: 00840255586993
- UPC: 840255586993
- Net Dimensions (W x D x H): 31.57" x 7.44" x 11.69"
- Net Weight: 24.91 lbs
- Packing Dimensions (W x D x H): 36.02" x 16.34" x 14.37"
- Gross Weight: 35.49 lbs
Outdoor Unit

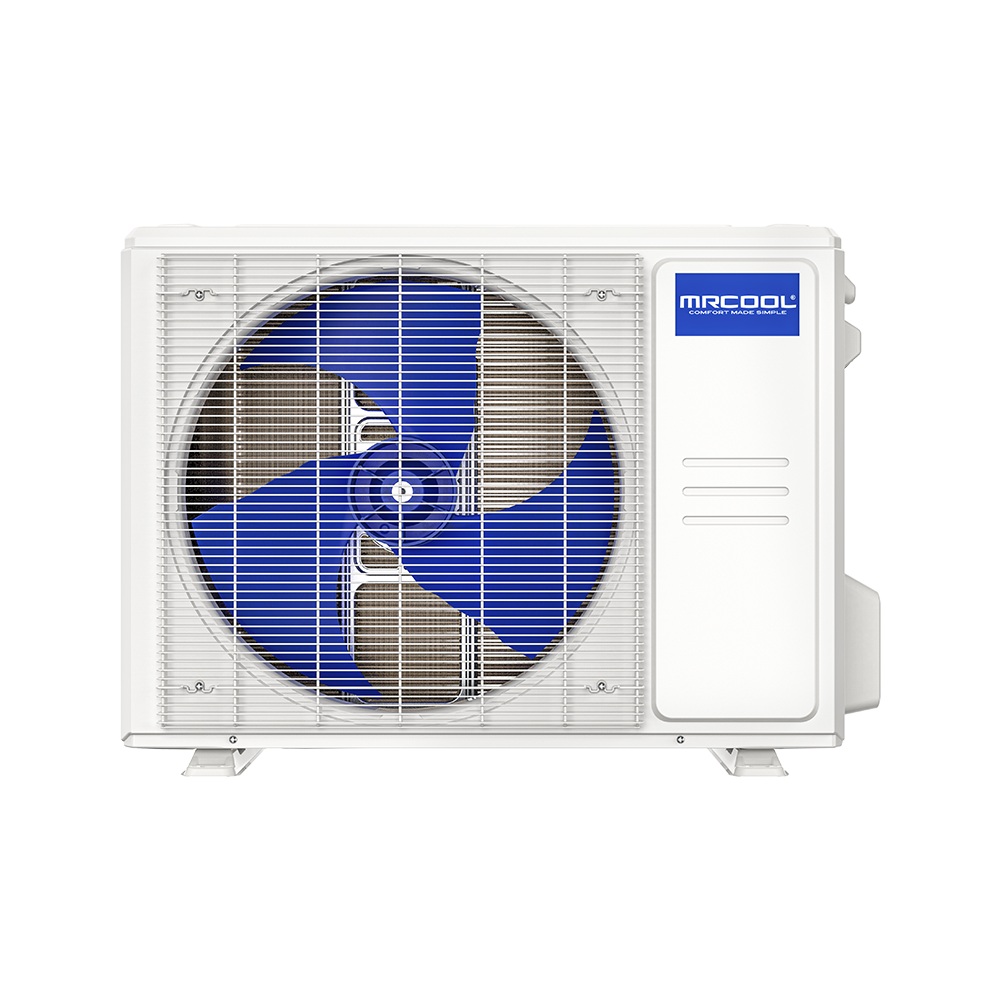

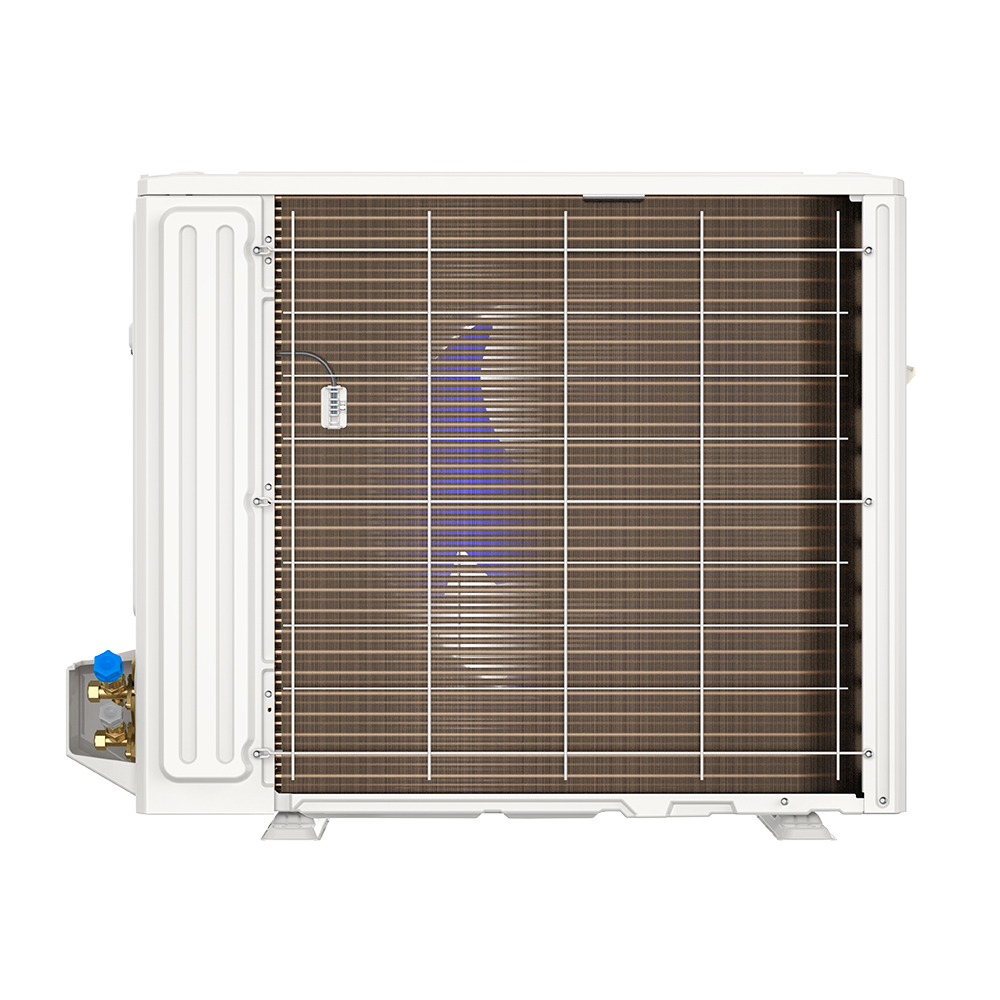

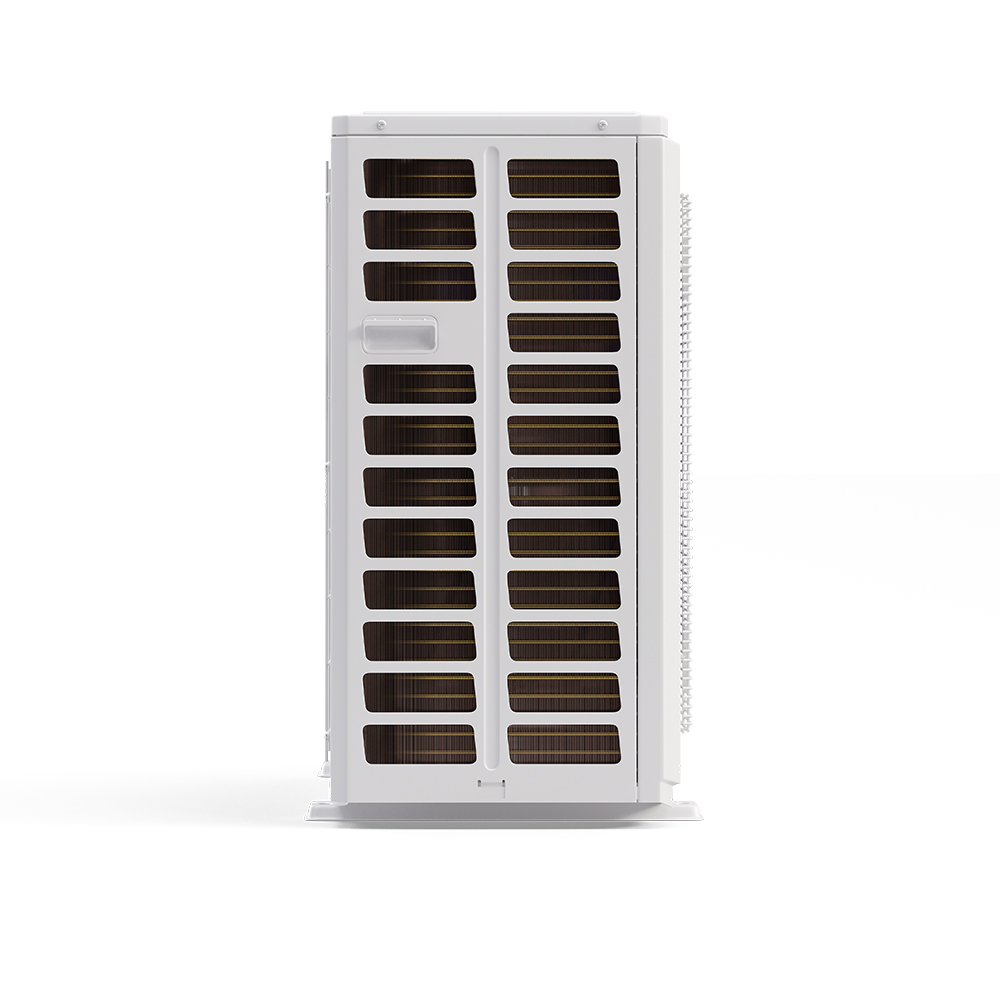

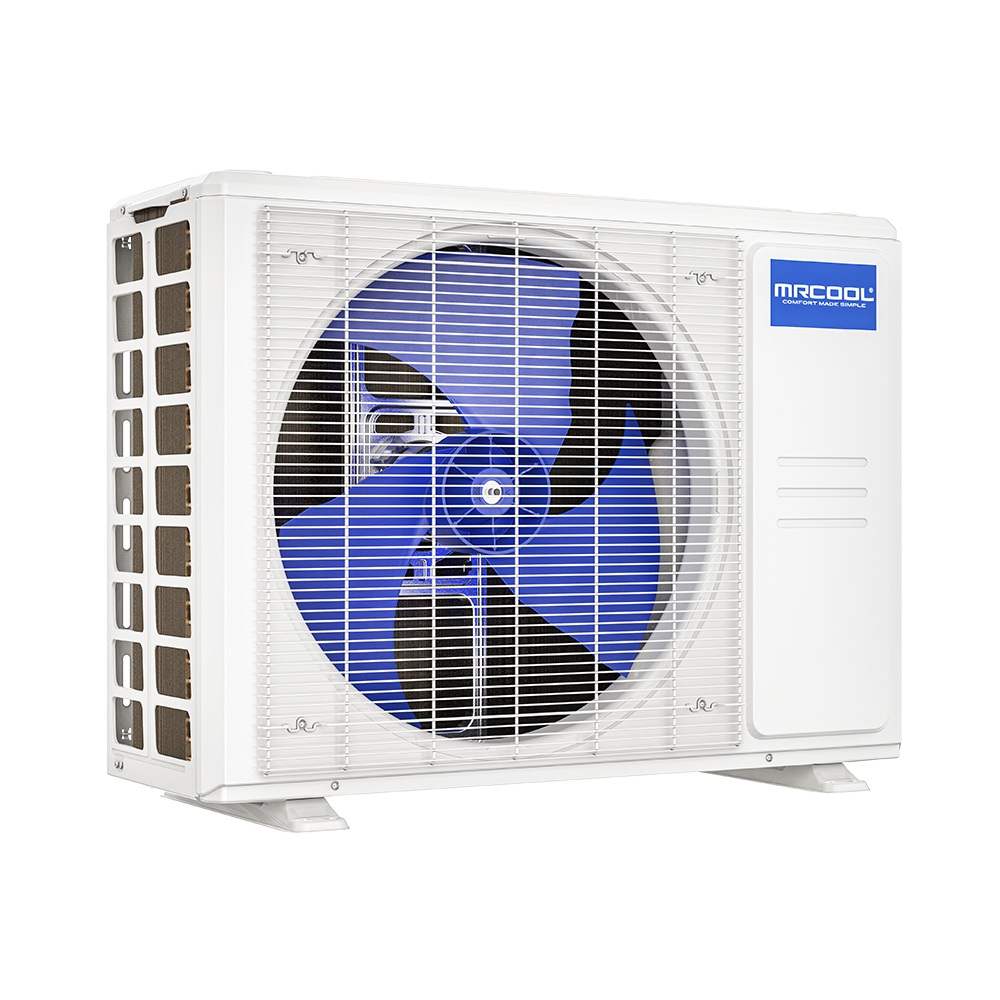

- Outdoor Unit: DIY-09-HP-C-115D25-O
- GTIN: 00840255586948
- UPC: 840255586948
- Net Dimensions (W x D x H): 30.12" x 11.93" x 21.85"
- Net Weight: 65.48 lbs
- Packing Dimensions (W x D x H): 36.22" x 16.54" x 27.56"
- Gross Weight: 83.11 lbs
Line Sets
- Line Set Length: 25ft
- Max Lineset Length: 82.00 ft
- Liquid Line Size: 1/4"
- Suction Line Size: 3/8"
Features
- Intertek listed 5031495
- Easy DIY installation
- Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
- Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
- The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
