- Model: K9KK60BF
- Cooling capacity: 60,000 BTU/hr
- Voltage: 220/1
- Cooling Area (ft²): 2000
- Refrigerant: R-32

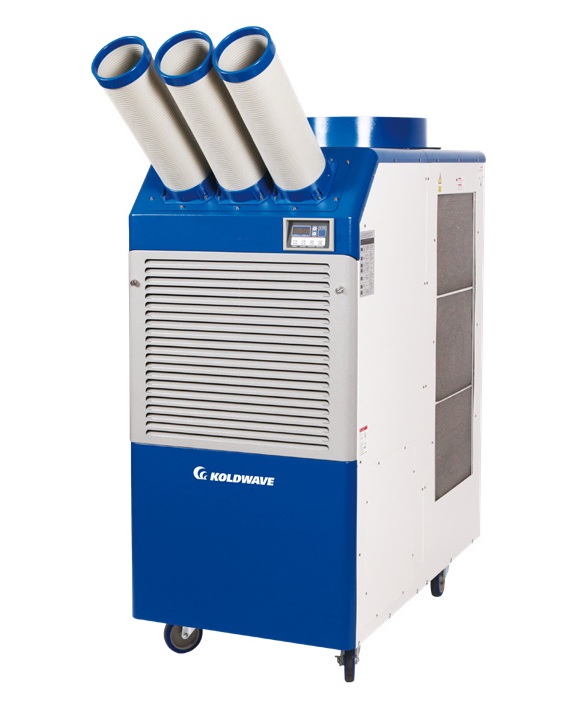

Koldwave Portable Air Conditioners feature spot cooling for large areas where cooling of the entire area is not practical. A dedicated spot cooling thermostat controls the unit in this application. These air conditioners can also be used in smaller areas for room cooling. A control panel provides ease of use and contains a self-diagnostic function and display, showing operating modes, room and set temperatures, and faults. If an abnormal operation occurs, a visual display of the fault is shown. Caster wheels are included for easy portability. Suitable applications include: a factory or work place, industrial kitchen, computer room, emergency cooling, etc.
- View more of our Koldwave Air Cooled Portable Air Conditioners
- In compliance with EPA requirements and worldwide trends,all Koldwave products are now made with low GWP refrigerants, identified by ASHRAE as class A2L. This model uses R32 refrigerant.
- 60,000 Btu Cooling Capacity
- Spot-Cool / Room-Cool Thermostat Settings
- Internally Insulated with Fiberglass Insulation
- Separate Direct Drive Fan Motors
- Digital Control Panel
- Condensate Pump with Overflow Protection
- 220/1 Phase, 60 Hz
- Directional Nozzles (3)
- Heavy Duty Twin Wheel Casters for Portability
- Self-Diagnostic System
- Off-Timer
- Washable Filters
- 20" Hot Air Exhaust Flange
Safety Devices
- Compressor Overload Protection
- Anti-freezing Thermistor
- Hot Gas Bypass
- Automatic Restart (Power Interruption)
- Compressor Time Delay Program
- High Pressure Switch
- Model: K9KK60BF
- Cooling Capacity (BTU/hr): 60,000
- Power Supply (Voltage): Single Phase, 220V, 60Hz
- Power Consumption (W): 6,180
- Rated Current (A): 28.4
- EER Btu/Wh: 9.7
- Nema Plug: Terminal Type
- Power Cord Guage (AWG): 10
- Power Cord Length (ft.): 10 (3.05)
- No. of Cool Air Outlets Pcs: 3
- Condensate Tank: Auto Pump Included
- Ambient Temperature Range (°F): 64 - 113
- Setting Temperature (Room Cool Mode) (°F): 64 - 86
- Setting Temperature (Spot Cool Mode) (°F): 32 - 86
- Room Cool Application Area (ft²): 1720 (160)
- Refrigerant Type: R-32
- Refrigerant Amount oz (g): 105.8 (3000)
- Design Pressure (High/Low) PSI (kPa): 450 / 250
- Indoor Air Flow (High/Low) (CFM): 1700 (48)
- Wheel Diameter in (mm): 5 (127)
- Hot Air Duct Diameter In. (mm): 20 (500)
- Maximum Duct Length ft (m): 100 (30)
Dimensional Data
- Product (Width x Depth x Height): 28.1" x 43.8" x 54.3"
- Weight (Net): 494 lbs.
- Shipping Dimensions (Width x Depth x Height): 29" x 44" x 56"
- Shipping Weight: 760 lbs.
- Free phone technical support
- 2-year parts-only warranty
- 3-year compressor warranty
