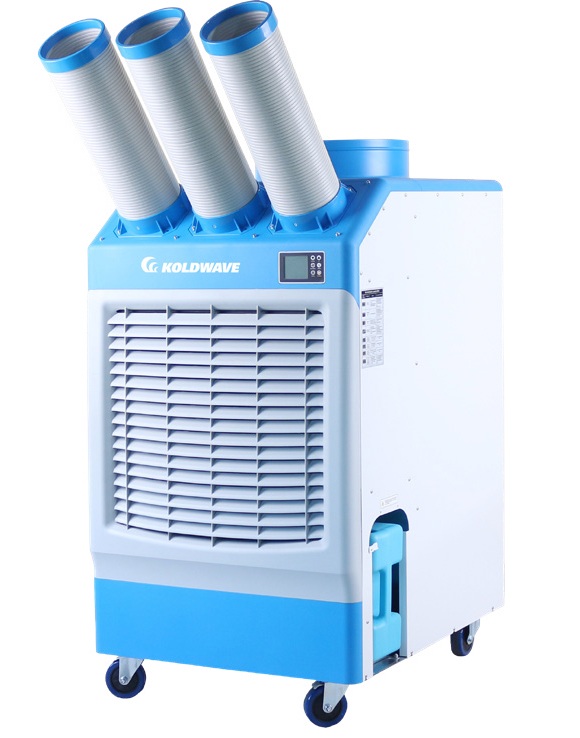

- Model: K9KK30BF
- Cooling capacity: 28,000 BTU/hr
- Voltage: 220/1
- Cooling Area (ft²): 933
- Refrigerant: R-32
These air conditioners can also be used in smaller areas for room cooling. A control panel provides ease of use and contains a self-diagnostic function and display, showing operating modes, room and set temperatures, and faults. If an abnormal operation occurs, a visual display of the fault is shown. Caster wheels are included for easy portability. Suitable applications include: a factory or work place, industrial kitchen, computer room, emergency cooling, outdoor event, etc.
- View more of our Koldwave Air Cooled Portable Air Conditioners
- Spot Cool/Room Cool Thermostat Settings
- Internally Insulated with Fiberglass Insulation
- Thermostatic Control with Multi-Speed Fan
- Double shaft motor for two fans
- R-32 Refrigerant
- Approx. Cooling Area 743 sq. ft (69m²) (9KK30)
- 20 Amp Breaker (9KK30)
- Optional Easy Install Condensate Pump Kit
- 220/1 Phase/60 Hz
- Heavy Duty Twin Wheel Casters for Portability
- Self-Diagnostic System
- Off-Timer
- Washable Filters
- Hot Air Duct Diamater (9KK30 & 9KK37) - 16" (406mm)
Safety Devices
- Compressor Overload Protection
- Anti-freezing Thermistor
- Full Drain Tank Switch
- Automatic Restart (Power Interruption)
- Compressor Time Delay Program
- High Pressure Switch
- Model: K9KK30BF
- Cooling Capacity (BTU/hr): 28,000
- Power Supply (Voltage): Single Phase, 220V, 60Hz
- Power Consumption (W): 2,000
- Rated Current (A): 14.5
- EER Btu/Wh: 9.3
- Nema Plug: 6-20P
- Power Cord Guage (AWG): 12
- Power Cord Length (ft.): 10
- No. of Cool Air Outlets Pcs: 3
- Condensate Tank Size gal (l): 3.96 (15)
- Ambient Temperature Range (°F): 64 - 113
- Setting Temperature (Room Cool Mode) (°F): 64 - 86
- Setting Temperature (Spot Cool Mode) (°F): 32 - 86
- Room Cool Application Area (ft²): 743
- Refrigerant Type: R-32
- Design Pressure (High/Low) PSI (kPa): 450 / 280
- Indoor Air Flow (High/Low) (CFM): 741 / 635
- Wheel Diameter in (mm): 4 (102)
- Hot Air Duct Diameter In. (mm): 16 (400)
- Maximum Duct Length ft (m): 60 (18)
Dimensional Data
- Product (Width x Depth x Height): 22.1" x 29.5" x 47.2"
- Weight (Net): 244.7 lbs.
- Shipping Dimensions (Width x Depth x Height): 25" x 35" x 52"
- Shipping Weight: 311 lbs.
- Free phone technical support
- 2-year parts-only warranty
- 3-year compressor warranty
