- Model: IW-25-5 In
- Spaced For: 1,500 sq. ft.
- Air Flow (with clean air filter): 120 cfm
- Supply Voltage: 120V/60Hz
- Refrigerant: R32
Wall Mounted IW-25-5 IN Wall Dehumidifier With Bi-Polar Ionizer
The patent pending IW-25-5 In Wall Dehumidifier with combined Bi-Polar Ionization Technology controls excessive moisture that contributes to poor indoor air quality, property damage, mold, comfort complaints, and possible liability risks. The IW-25-5 in wall dehumidification system helps lower indoor relative humidity helping prevent moisture issues. * The quiet and easy to install built-in dehumidifier system is suited for both new construction and retrofit installations in multifamily, hotels, student housing, and residential applications. Removes up to 33 pints per day (@80°F and 60%RH) in 1,500 square feet.
The IW-25-5 removes 33 pints of moisture in 1,500 square feet. This fifth generation dehumidifier includes an ozone-free Bi-polar Ion Generator that distributes ions which bond to indoor pollutants including bacteria, viruses, pollen, mold and odors, breaking them down and transforming them into water vapor.
How It Works

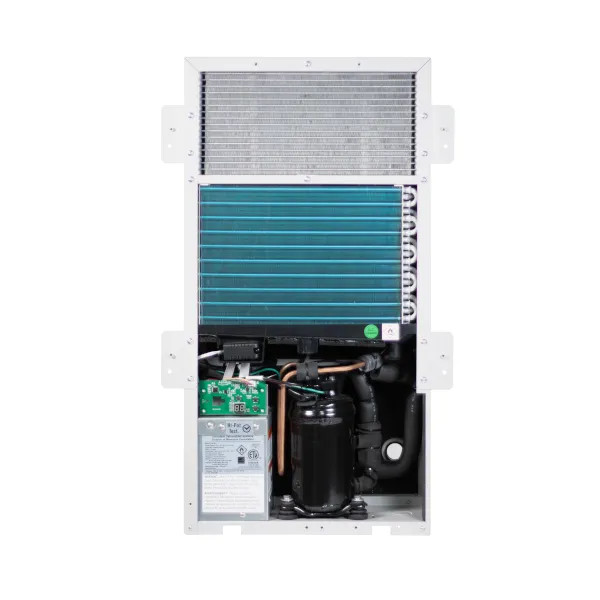

The IW25-5 IN WALL Dehumidifier system with Bi-Polar Ionization Technology utilizes its integral humidistat to monitor the indoor conditioned space. When the relative humidity goes above the selected setpoint, the dehumidifier will energize. As air is drawn across an evaporator coil, which is cooler than the dew point of the air, moisture condenses. The air is then reheated through the condenser coil and distributed back into the room.
Installation
IW25-5 In-Wall Dehumidifier with combined Bi-Polar Ionization Technology is recessed and fits in a 2 x 6 wall or through a 2×4 interior wall. For semi-recessed applications, an IDS Exterior Sleeve (sold separately) can be used.
What's In The Box
- The IW25-5 IN Wall dehumidifier with a bi-polar ion generator

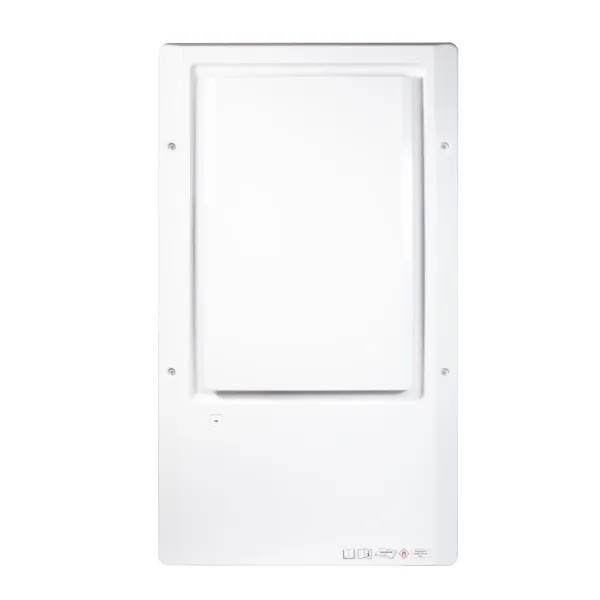

- 1 - In-wall front cover
- 1 - In-wall washable air filter
- 1 - Drain hose and clamp
- 1 - Power cord
- 1 - Front cover tool
- 1 - Set of tamper-resistant screws
- 1 - Operations Manual
All dehumidifier parts are included with purchase. The mounting screws are not provided with purchase because the type needed may vary Our team is available to help find the best fit for the IW25-5 On-Wall Dehumidifier.
- ENERGY EFFICIENT
- 33 pints per day
- Recesses IN-Wall or Mounts ON-Wall
- Designed to fit: 16″ studs or Hang ON wall
- Installs easily for new construction or retro-fit applications
- Sound levels less than 47 dBA*
- ETL listed
- Uses R134A Refrigerant 190G
- Durable front cover w/ metal chassis
- Tamper proof screws
- On/Off switch & humidity control behind the front cover
- Built-in digital humidistat
- MERV air filter
- Washable and re-usable filter
- Automatic restart (in the event of power failure)
- Hardwire or Plug in Option (Standard 120V outlet)
- 10' cord
- Alternate power routing
- Drains directly to plumbing
- 10' condensate hose
- Easily connected to hub drain, hard pipe or to a drain (depending on install location)
- Versatile drain routing
Operational Performance
- Water Removal
- @80⁰F/60% RH: Up to 33 PPD
- @65⁰F/60% RH: Up to 21 PPD
- Energy Factor
- @80⁰F/60% RH: 1.65 L/kWh
- @65⁰F/60% RH: 1.92 L/kWh
- Spaced For: 1,500 sq. ft
- Air Flow (with clean air filter): 120 cfm
- Sound Pressure Level: 47 dBA
- Operating Temperature Range: 46-95⁰F
- Functioning Relative Humidity Range: 36-90%
- Warranty: 5 Years on Parts & Labor
- Drain Connection Length: 10'
- Drain Connection Diameter: 3/4" O.D.
- Refrigerant: R32; 155g
Electrical
- Supply Voltage: 120 VAC/60 Hz
- Rated Average Power Consumption: 300 Watts @ 80⁰F/60% RH
- Max Power Consumption: 440 Watts @ 90⁰F/95% RH
- Max Absorbed Current F.L.A.: 2.8 Amps @ 80⁰F/60% RH
- Locked Rotor Current L.R.A: 13.2 Amps
Ion Generator
- Ion Output: 3,000,000/cc
- Test Condition: 20Cm; Wind Speed 1m/s
- Ion Type: Bi-Polar/Positive and Negative Ions
- Input Voltage: Input Voltage
In Wall Dimensions
- In Wall Base Unit: 27.625" x 14.25" x 5.75"
- In Wall Unit/Cover: 30.375" x 17.25" x 7.25"
- Rough Opening: 28" x 14.5" x 5.75"
- Exterior Sleeve: 30.5" x 17.5" x 2.2"
- Weight: 39 lbs.
