- Model: A310V3
- Part Number: A310V3
- Water Removal: 340 Pints Per Day
- Airflow: 830 CFM
- Power: 8.3 AMPS, 277V - 1 - 60
- Operating range Temp/RH: 60/50 to 85/80
- Weight: 176 lbs

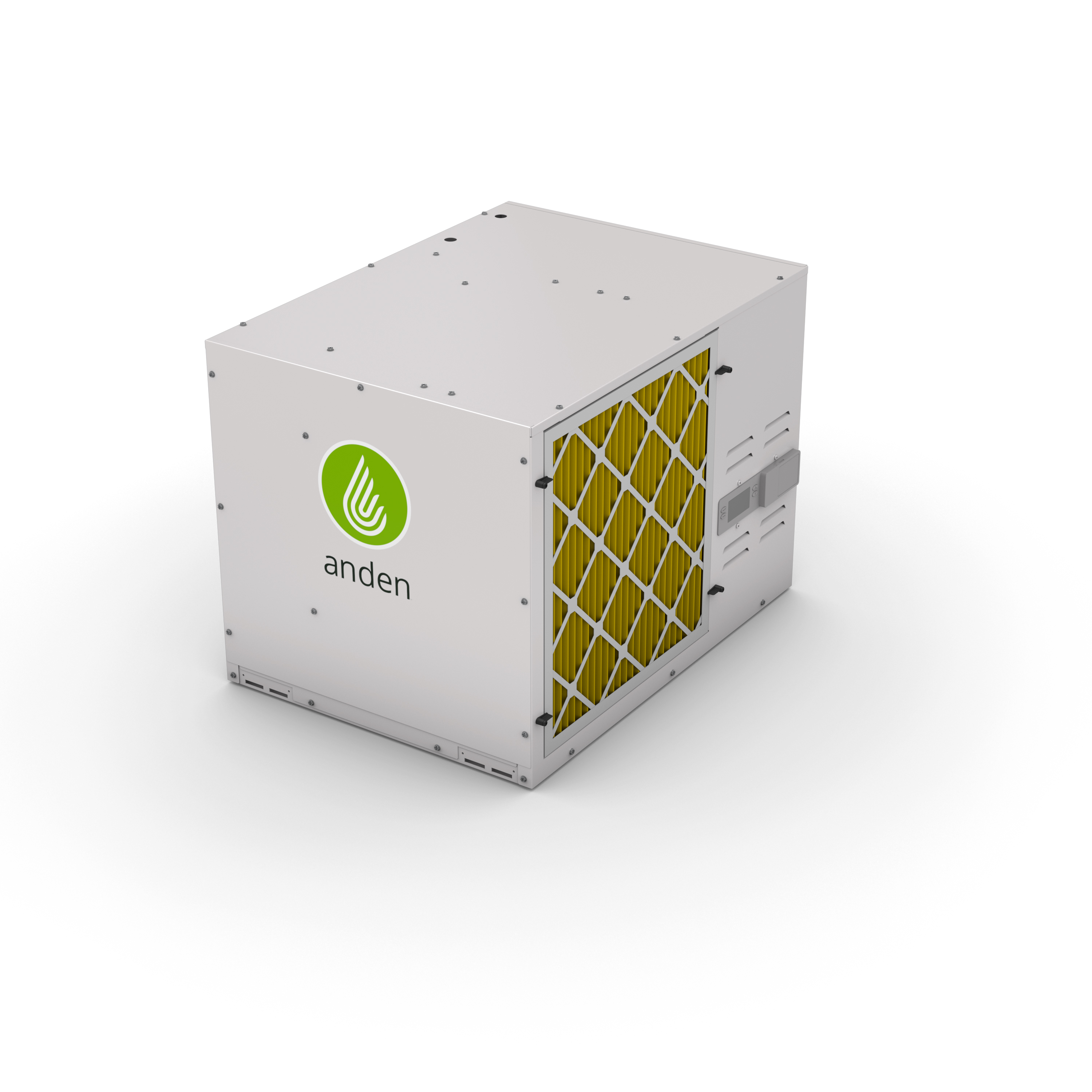

340 Pints Per Day, 277VAC. Anden A320V3 dehumidifier is designed and built for cultivation. This industrial grow room dehumidifier unit removes up to 340 pints of moisture per day, and powerfully circulates air within your cultivation space to create a healthy, grow-optimized environment. And it really moves some air–up to 830 cubic feet per minute for maximum moisture removal. Setup is simple, and humidity is constantly controlled to help prevent crop disease and pests.
The Anden Model A320V3 Dehumidifier is designed to dehumidify the air coming into the unit by passing the incoming air over an evaporator coil to drop the air temperature below the dew point of the air. Moisture is removed from the air and drained out of the unit to a common floor or waste drain. The air is then reheated in the condenser coil and exits the unit.
Dehumidification occurs until the set point is reached, then shuts off until the control determines a need for operation.
The Anden Model A320V3 Dehumidifier is the perfect solution for the precise management of humidity required in an indoor growing environment.
Click here to view more of Anden Dehumidifiers
The Anden Impact
Anden dehumidifiers put you in control of your growth environment. You get maximum moisture removal and VPD control, with on-board and remote monitoring capabilities to make it all intuitive. Simply put, these grow-optimized products are designed with your plants in mind.
Humidity And Growth
Humidity control is critical. As a cultivator, you know that. Each stage of growth requires an optimized environment for proper transpiration. Keeping humidity in check will prevent mold and mildew, and help plants get the CO2 they need for efficient photosynthesis and growth.
Vapor Pressure Deficit
For optimal indoor growth, don’t forget about VPD. It’s a measure of the difference between vapor pressure in the leaves of your plants and the air surrounding them. Humidity control in the growth environment helps ensure that plants can “breathe” by taking in moisture and letting it out.
- 340 Pints/day – Industrial-level humidity control
- 830 CFM @ 0.0" – To remove moisture, it’s got to move the moisture-filled air. The powerful fans circulate huge amounts of air for maximum moisture removal
- Energy Efficient – Removes up to 2.5 liters per kilowatt hour, helping keep your operation efficient
- Easy Filters – The self-sealing air filter protects the unit’s vital components, plus it’s easy to replace
- Flexible Installation – The pre-installed electrical plug is simple to remove for hard-wired applications. Plus, options for suspended, freestanding, or ducted installation
- Safety Checks – Terminals on the Anden A320V3 dehumidifier make it easy to install a float switch to protect against overflows
- Remote Control – The included Model A77 remote control relays diagnostics from the dehumidifier, giving you simple control of the conditions in your cultivation space (upgrade options available)
- 1-2-3 for VPD – The unit constantly monitors humidity and temperature, making it simple to reach the optimal Vapor Pressure Deficit for maximum growth
- Built to Last – Designed and Manufactured in U.S.A. Dependability is at the heart of what we do. That’s why we offer a 5-year warranty on this product–so you can grow with confidence
- Whether you are starting seedlings, rooting cuttings or drying, humidity control is critical. Humidity rising above 60% can lead to molds, mildews, and other unwanted biological growth. High humidity can also prevent plants from properly taking in CO2, preventing efficient photosynthesis. Anden helps create an environment that drives transpiration at an optimal rate, while helping prevent disease outbreaks.
Water Removal Rates(Pints/Day)
- 340 Pints 80°F/60% RH
- Part Number: A320V3
- Capacity PPD AT 80°/60%RH: 316
- Energy factor: 2.7 L/kWh, 5.7 pints/kWh
- Voltage, Phase, Frequency: 277V~, 1 Phase, 60 Hz
- Current draw (amps): 8.3
- Power (watts): 2,313
- Btu/h: 7,900
- Power cord type and length: SJT, L7-20P, 10ft
- Hardwire: Field-configurable
- Breaker size: 20 amp
- CFM: 830
- Operating range Temp/RH: 60/50 to 85/80
- Warranty: 5 Years
Unit Dimensions
- Width: 32 5/8"
- Height: 24"
- Depth: 24 1/4"
- Weight: 176 lbs
Included Items
- Control: Model A77
- Drain fittings
- 3/4" MNPT x 3/4" BARB
- 3/4" MNPT x 3/4" Female pipe
- 3/4" FNPT x 3/4" Female pipe
- 3/4" P-Trap
- Drain tubing (length, ID): 10' – 3/4" ID
- Thermostat wire: 30' 20 gauge 4-wire
