- Model: Advance Dry110
- Part Number: 4047010
- Water Removal: 110 Pints/Day
- Blower: 370 CFM up to 0.0" WG
- Supply Voltage: 115 volt - 1 phase - 60 Hz
- Operating Temperature: 40°F Min., 95°F Max.
- Weight: 102 lbs
Exclusive and powerful. It's ready to take on your space.

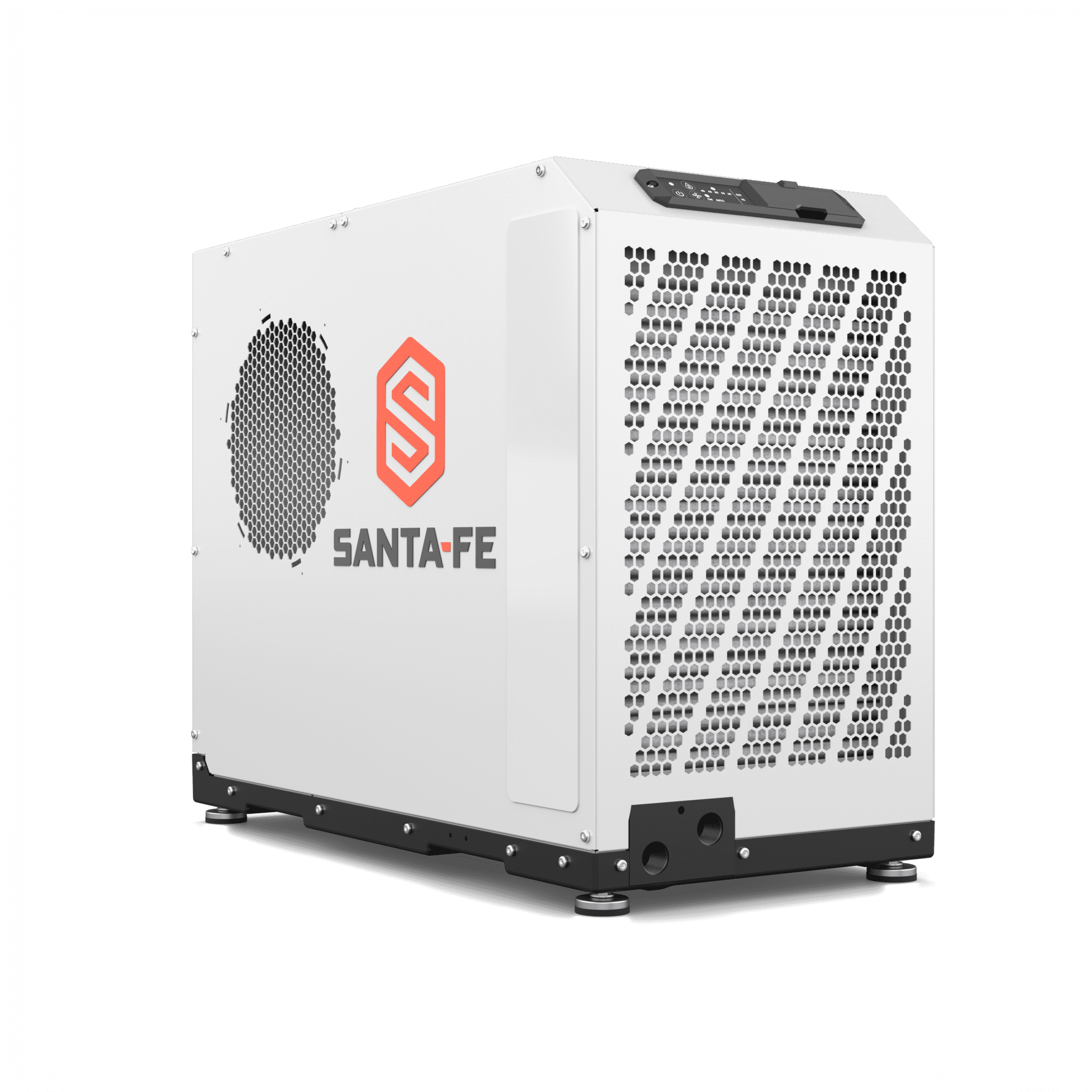

Our most powerful dehumidifier, the Advance Dry110, is perfect for basements, crawl spaces, and attics. It features dual exhaust outlets, on-board digital, an internal P-trap, and dew point cut-out.
The Advance Dry110 features industry exclusive dual exhaust outlets for maximum space drying and installation flexibility. It features onboard digital controls with a terminal block, dew point cut out, and a low maintenance built in P-trap.
Click here to view more of Santa Fe Dehumidifiers
- Dual exhaust outlets allow for air distribution to multiple locations
- On-board digital controls with terminal block for wiring SmartAire Remote Sensorand float switch
- Horizontal cabinet is conveniently sized for installation in crawl spaces, basements or attics
- Engineered for low temperature operation and the air flow issues that crawl spaces present
- Ducting options for divided spaces
- Auto restart allows the dehumidifier to automatically restart after a power outage
- Dew point cut-out protects from low temperature inefficient operation
- Molded base with integrated handles for easy movement and installation
- Patented Efficiency Capacity Coil Optimization (ECCO™) technology featuring corrosion resistant dual coated coils
- Basements
- Crawl spaces
- Garages
- Home theaters
- Workshops
- Gun rooms
- Exercise rooms
- New home
- Commercial
Water Removal Rates(Pints/Day)
- @ 80°F and 60%RH - 110 Pints / 13.75 Gallons
- @ 65°F and 60%RH - 70 Pints / 8.75 Gallons
- Model: 4047010
PERFORMANCE
- Water Removal:
- @ 80°F and 60%RH - 110 Pints / 13.75 Gallons
- @ 65°F and 60%RH - 70 Pints / 8.75 Gallons
- Efficiency:
- 7.7 Pints/kWh
- 5.92 Pints/kWh
- Energy Factor:
- 3.66 L/kWh
- 2.81 L/kWh
- Blower: 370 CFM @ 0.0” WG
- Operating Temperature: 40°F Min., 95°F Max.
- Crawl Space Sizing: Up to 3,600 Sq. Ft. / 16,800 Cu. Ft.
- Basement Sizing: Up to 2,900 Sq. Ft. / 26,300 Cu. Ft.
ELECTRICAL
- Power Cord: 10', 115 VAC, Ground
Plug Type B (USA, MEX, CAN, JPN) - Power: 480 watts @ 65°F and 60% RH
- Supply Voltage: 115 volt – 1 phase – 60 Hz
- Current Draw: 4.1 amps @ 65°F and 60% RH
SPECIFICATIONS
- Drain Connection: 3/4" Threaded Female NPT
- Drain Hose: 8' Direct Gravity Drain Hose (5/8" ID x 7/8" OD)
- Refrigerant: R454B, 36 oz
UNIT DIMENSIONS
- Width: 14.35"
- Height: 24"
- Depth: 29"
- Weight: 102 lbs.
SHIPPING
- Shipping Dimensions: 19.75"W x 28.25"H x 40.25"D
- Shipping Weight: 115 lbs.
- Pallet Quantity: 4 per pallet
- UPC Number: 810017961801
- Shipping Options: UPS, LTL, FTL
