- Heating/Cooling (Tons): 4-5
- Cooling Capacity: 48,000 - 60,000 BTU
- Heating Capacity: 48,000 - 60,000 BTU
- Seer: Up to 18
- Voltage: 208-230V/1Ph/60Hz
Our cooling-only condenser with a DC inverter compressor is the newest addition to the Universal® line of products in 4-5 Ton sizes. Customers who are looking only for the cooling efficiency of a Universal® Condenser can leverage this superior product as their perfect home comfort solution.
Of course, those who want cooling-only can still pair this Universal® condenser with an energy-efficient gas furnace option from our Signature Series 95% line to get high-quality heating as well. And since it is non-communicating, this could be an ideal product for homeowners who have a relatively new gas furnace they want to match with variable-speed Universal® technology.

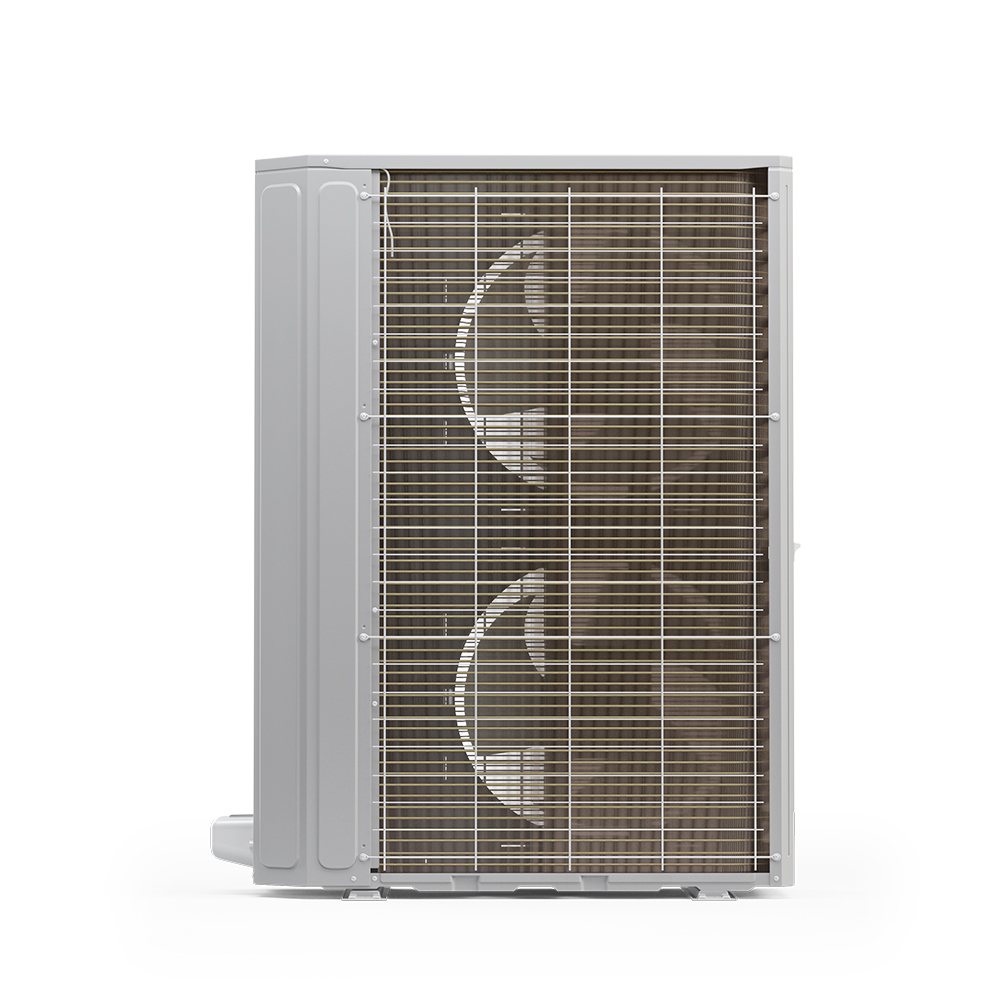

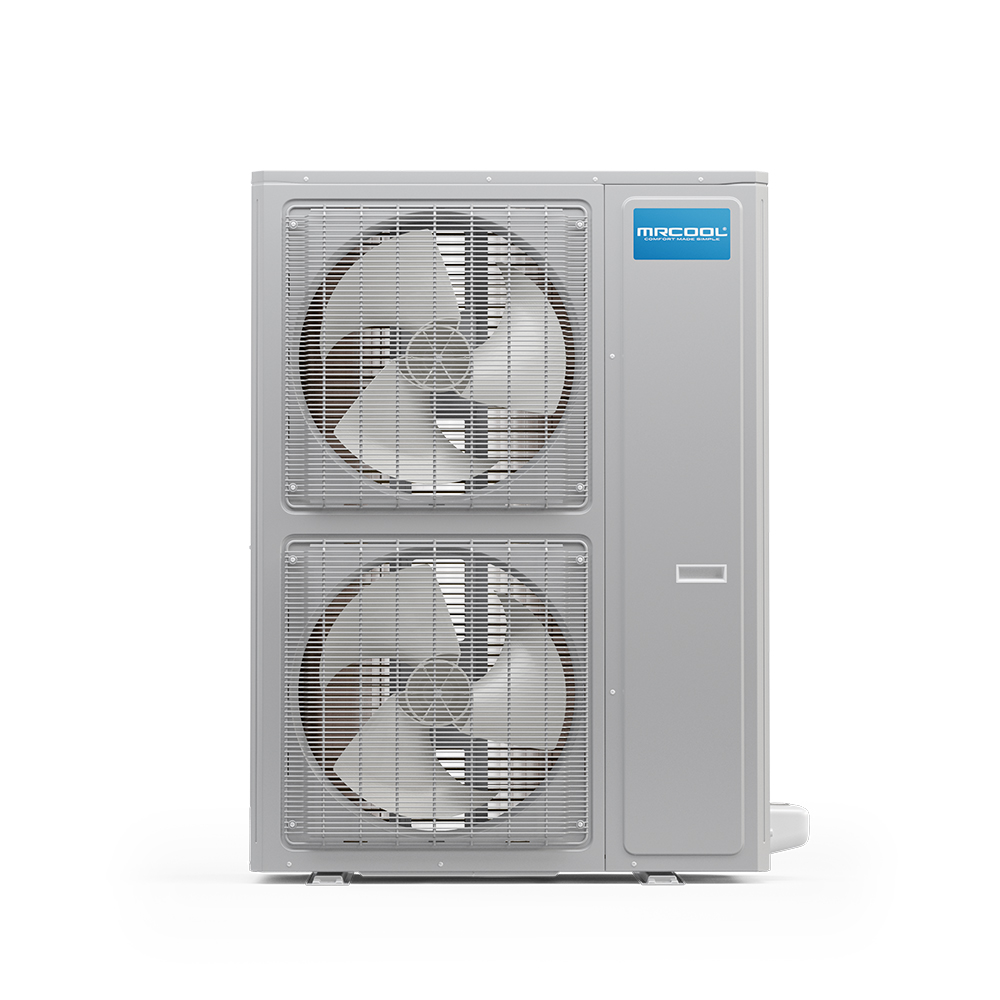

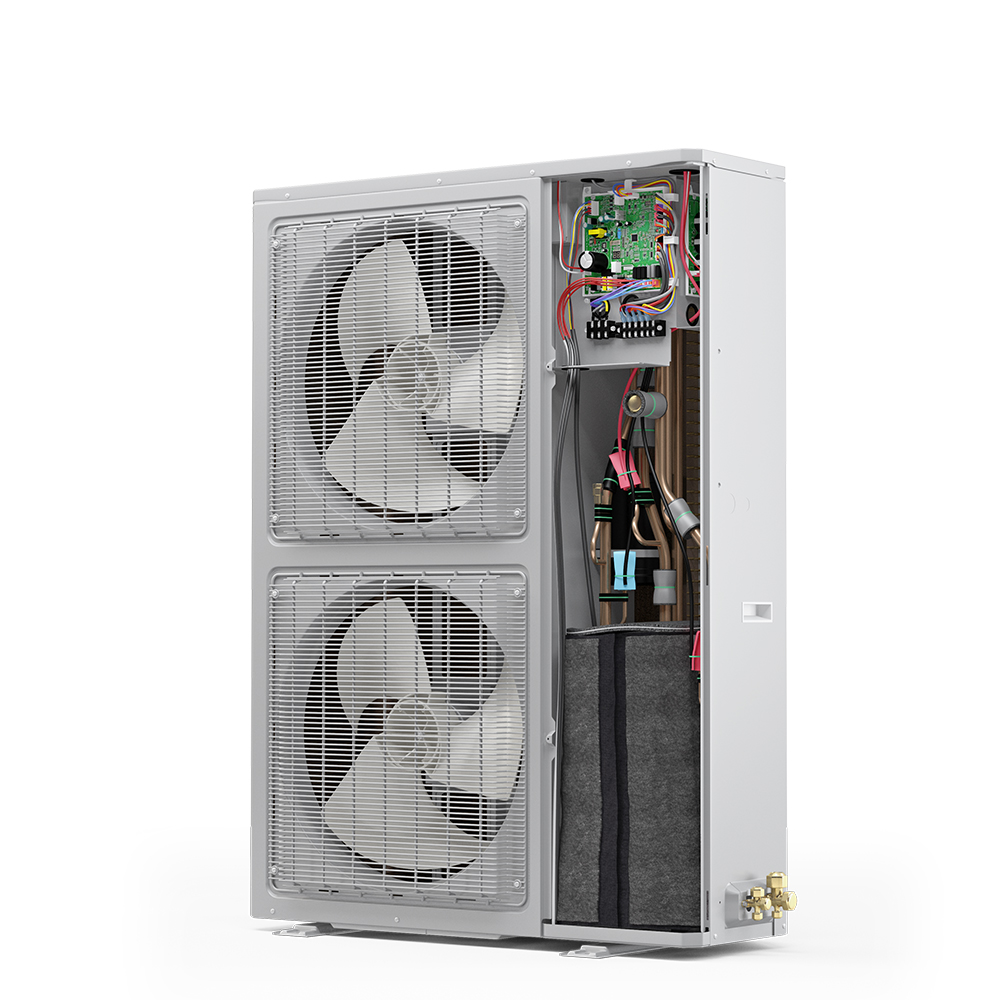

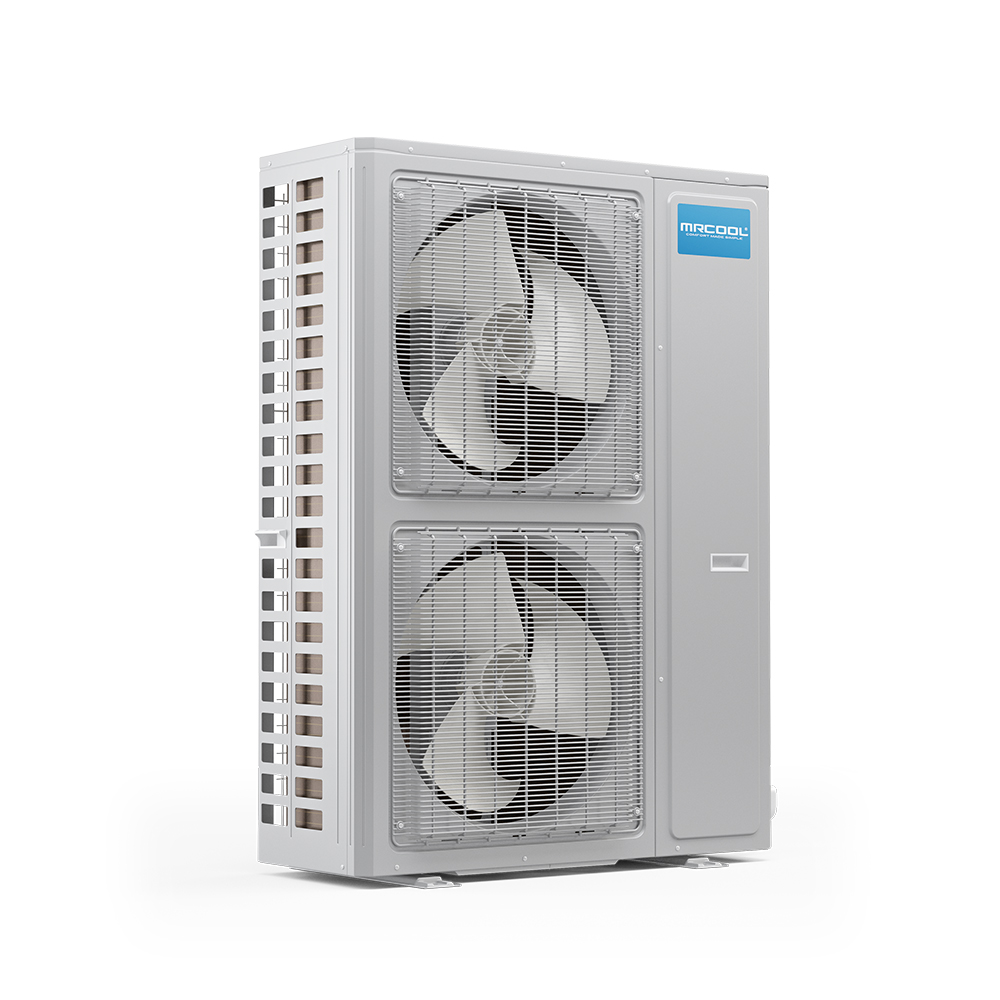

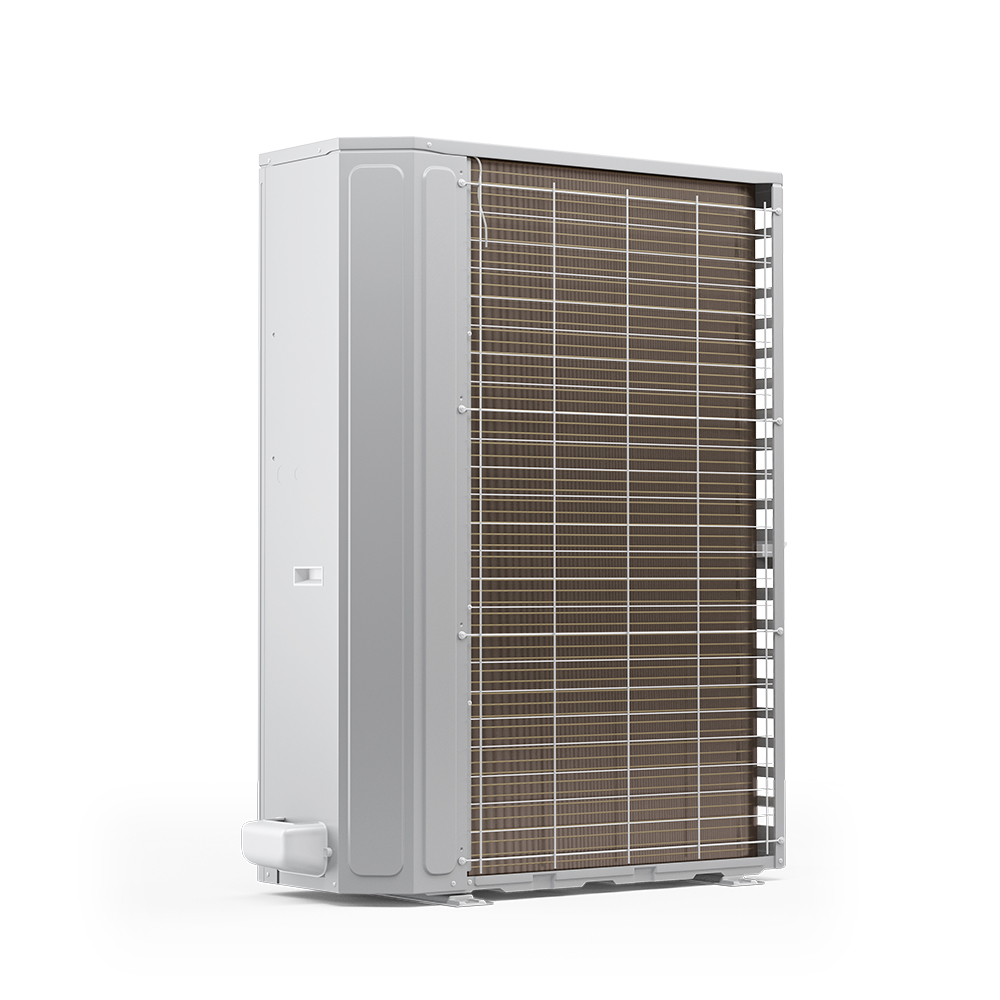

Universal Condenser - MDUO18048
- Cooling Capacity (Btu/h (kW)): 48000 (14kW)
- Cooling Capacity (Btu/h (kW)): 48000 (14kW)
- SEER (Bt/w): Up to 18
- EER (Btu/h)/W: 11
- HSPF (Btu/w): 10.5
- Noise level dB(A): 58
- Min/Max Voltage (V): 187/253
- Rated Voltage (V): 208/230
- Min Current Ampacity (MCA) (A): 35
- Maximum Over Protection (MOP) (A): 45
- Net Dimension (WXDXH): 39.4x14.5x53.6 (1000x370x1363) inch (mm)
- Packing Dimension (WXDXH): 44.8x18.9x58.6 (1138x478x1490) inch (mm)
- Net weight - Outdoor: 308.7 (140) lbs (kg)
- Gross Weight - Outdoor: 337.3 (153) lbs (kg)
- Refrigerant Type: R-410A
- Connection Pipe Method: Quick Connect, Flare, Weld
Universal Air Handler - MDUI18060
- Cooling Capacity (Btu/h (kW)): 54000 (15.83kW)
- Cooling Capacity (Btu/h (kW)): 54000 (15.83kW)
- SEER (Bt/w): Up to 17
- EER (Btu/h)/W: 10.5
- HSPF (Btu/w): 10
- Noise level dB(A): 51
- Min/Max Voltage (V): 187/253
- Rated Voltage (V): 208/230
- Min Current Ampacity (MCA) (A): 4
- Maximum Over Protection (MOP) (A): 15
- Net Dimension (WXDXH): 24.8x21.3x57 (630x540x1448) inch (mm)
- Packing Dimension (WXDXH): 27.3x26x59.4 (693x660x1508) inch (mm)
- Net weight - Indoor: 202.8 (92 lbs (kg)
- Gross Weight - Indoor: 218.3 (99) lbs (kg)
- Refrigerant Type: R-410A
- Connection Pipe Method: Quick Connect, Flare, Weld
Much Quieter - Ideal for Sound Restrictions
For every 10 Decibels (dBa) a sound is twice as loud - making the Universal® at 55 dB(a) less than half as loud as a conventional condenser at 73 dB(a).
Slim Design - Ideal for Zero Lot Lines
Side discharge design takes less than half the area of conventional condensers. Perfect for city lots and between building applications where access is limited.
Versatile Installation - Truly Universal Installation Options
The Universal® has Flare, Flare-to-Weld or No-Vac® Quick Connect® line set options and Multi-Position Air Handler Installation (Upflow, Horizontal).
All-Climate Performance - NOT Your Typical Heat Pump
Heating‡: 100% Capacity at -5°F and 78% Capacity at -22°F*. Cooling‡: 100% Capacity at 115°F and 78% Capacity at 130°F*. (* outside temperature | ‡ based on 2 Ton model)
Thermostat Compatibility - Truly Universal Thermostat Options
Compatible with any third party thermostat including NEST® thermostats
Reliable Comfort - This DC Inverter Does It Better
The Universal® DC Inverter moderates operating load, heating & cooling with less fluctuation for more comfortable climate control, extending component life for fewer breakdowns.
Side Discharge - No Clogging / Less Space
The Universal® takes half the area and, unlike conventional condensers, doesn't fill up with leaves, snow and debris.
Sleep Mode - 24-Hour Comfort
We made Sleep Mode easy to program to save money, and let you sleep a little easier.
Versatile Application - Install Almost Anywhere
Replaces larger / louder condensers where sound / space limitations apply, and exceeds conventional heat pump performance ranges for All-Climate applications with optimal coverage from 1000 sqft to 2500 sqft.
Energy Efficient - Up to 20 Seer
The Universal® DC Inverter moderates operating load, increasing efficiency for lower operating costs.
Gold Fin® Condenser - Corrosion Resistant
Live on the coast? Don’t worry, our condenser is built to resist long term corrosion.
Quiet & Compact - Ideal for:
Zero Lot Line Homes
- Side discharge design takes less than half the area of conventional condensers
- Perfect for city lots and between building applications where access is limited.
Strict Sound Restrictions
- Decibels (dBa) are logarithmic - for every 10 dBa a sound is twice as loud - making a conventional condenser at 73 dB(a) more than twice as loud as the Universal at 55 dB(a).
- It's the difference between having a conversation and running a vacuum cleaner
- The Universal emits a soft soothing sound that fades into the background
Replacing Louder / Larger Systems
- Tired of depending on fuel oil or propane prices and delivery? This is a solution.
- The condensers can replace any R410A condenser of equivalent capacity using the existing Flare connection or included Flare-to-Weld kit
- OR Replace the whole system and connect to the Universal® Air Handler using our No-Vac® Quick Connect® Line Set
Integration with Existing Furnace
- Already have a furnace and want to add or replace the AC? The Universal A-Coil paired with Cooling-only Condenser can save you money upfront and long term with 20 SEER efficiency.
- Replacing your furnace and want to keep your gas heat? Check out the MRCOOL® Signature Series 95% AFUE Gas Furnace and Modular Blower
NO-VAC® Quick Connect® Pre-Charged Line Set:
- Kink Resistant for Easier Bending During Installation
- 100% Accurately Precharged R410A Refrigerant standard sizes: 15 ft, 25ft, 35ft, 50ft
- Optional No-Vac® Couplers can be used to combine two standard line sets to extend the length if needed
- Simple to Use, Leak Proof, and Screw-on Quick Connect Valves do not require vacuuming
- Quicker Installation than Conventional Line Sets
- Strong 3/4" Gator-Flextra™ UV Protective Insulation provides extra protection against sun damage, weather erosion, or destruction from animals or insects
Best-In-Class Performance Range:
- Exceeds Conventional Heat Pump Performance Ranges
- Unparalleled Heating: 100% at -5°F outside temp*
- 78% Heating Capacity at -22°F outside temp*
- Enhanced Cooling: 100% at 115°F outside temp*
- 78% Cooling Capacity at 130°F outside temp*
Installation Options:
- Universal® condensers can replace any R410A condenser of equivalent capacity using the existing Flare connection or included Flare-to-Weld kit
- OR Replace the whole system and connect to the Universal® Air Handler using our No-Vac® Quick Connect® Line Set
- Universal® Air Handlers and A-Coils are Multipositional for Upflow, Horizontal applications
- Universal® A-Coils can be added to an existing furnace or paired with our Signature Series furnaces and modular blowers.
Use-Cases:
- Comes in four capacities for optimal coverage from 1000 sqft to 2500 sqft
- Can replace larger / louder condensers where sound / space limitations apply
- All-Climate application - Exceeds Conventional Heat Pump Performance Ranges
- Slim design allows the customer more lot clearance and the reseller more inventory space in warehouse
- Add AC to a Furnace with the A-Coil and Cooling-only Condenser, or replace the whole system... either way, No-Vac® Quick Connect® line sets can save you time and money on installation.
Compatibility:
- Compatible with any third party thermostat including NEST
- Compatible with most any party R410A Air Handlers of equivalent capacity
Warranty - 5-year Parts or 10-year Registered Parts
Ten (10) years on all parts to the original registered end-user warranty. Five (5) years on all parts if not registered. Twenty (20) years from the date of original installation in a residential application.
