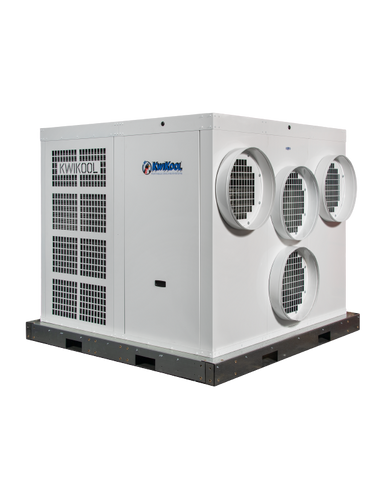

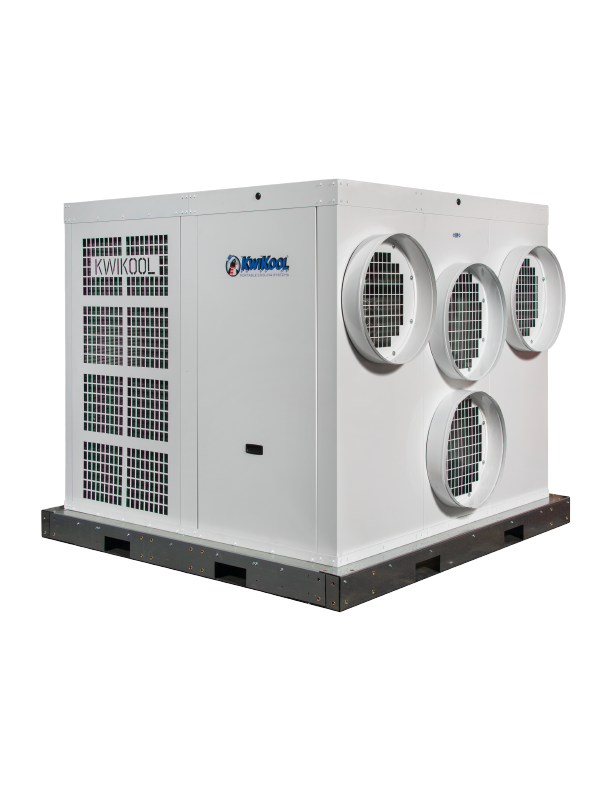

KwiKool KPO25-43-3 270,000 BTU 25 Ton Portable Air Conditioner

• Cooling capacity: 270,000 BTU/hr
• Condenser Airflow: 9500 CFM
• Power Supply (Volts): 460 Three Phase
• Refrigerant: R454B

The Model KPO25-43 (25-ton or 270,000 Btu) is the most versatile unit in size and capabilities compared to other portables with similar capacity. The KPO25-43 has an extremely small footprint that is ideal for difficult applications with limited available space. The KPO25-43 model is 66″ wide, 66″ long, and 60″ tall. The heavy-duty 12 gauge steel base offers forklift skid access for easy movement, setup, and transport. Up to eight units can be loaded onto a standard flatbed trailer. The unit is placed outdoors with a duct running into a building space, using high static blowers to reach an isolated heat load. This KPO model offers advanced airflow capabilities, up to 75 feet of 20″ cold air supply, and return ducts, which eliminates the need for the addition of a booster blower.

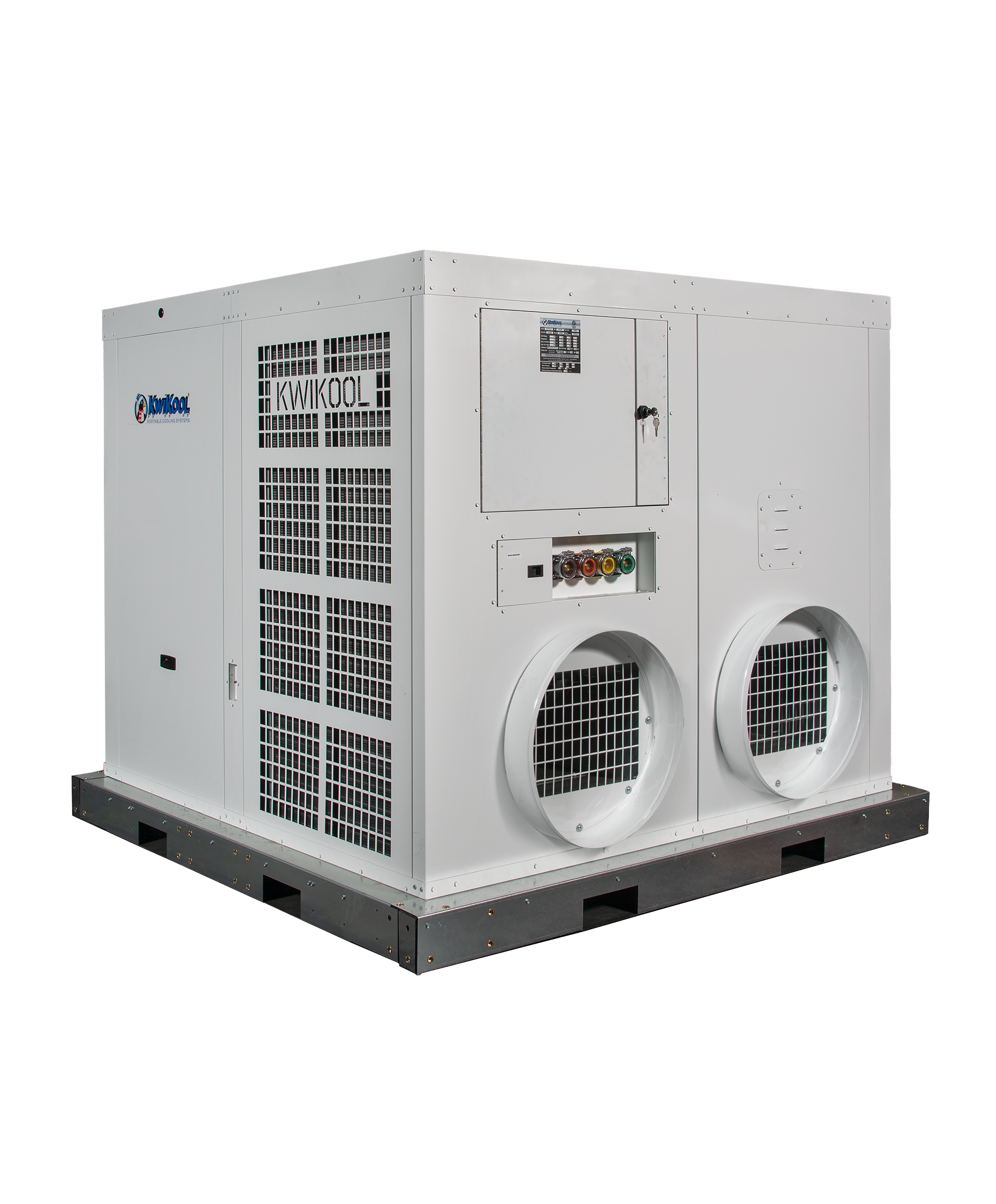

The KPO25-43 runs on a 460-volt/80-amp 3-phase circuit with built-in Cam Lock Connections for easy electrical hook-up. A phase monitor provides the unit with electrical protection. The unit will automatically shut down if the voltage or phases are improper, which could damage the unit’s electrical components. In addition, the condenser has Low Ambient Temperature Capability using a Variable Frequency Drive that allows the unit to operate at temperatures down to freezing. The unit also comes standard with an internal high-lift condensate pump to adequately remove condensation.

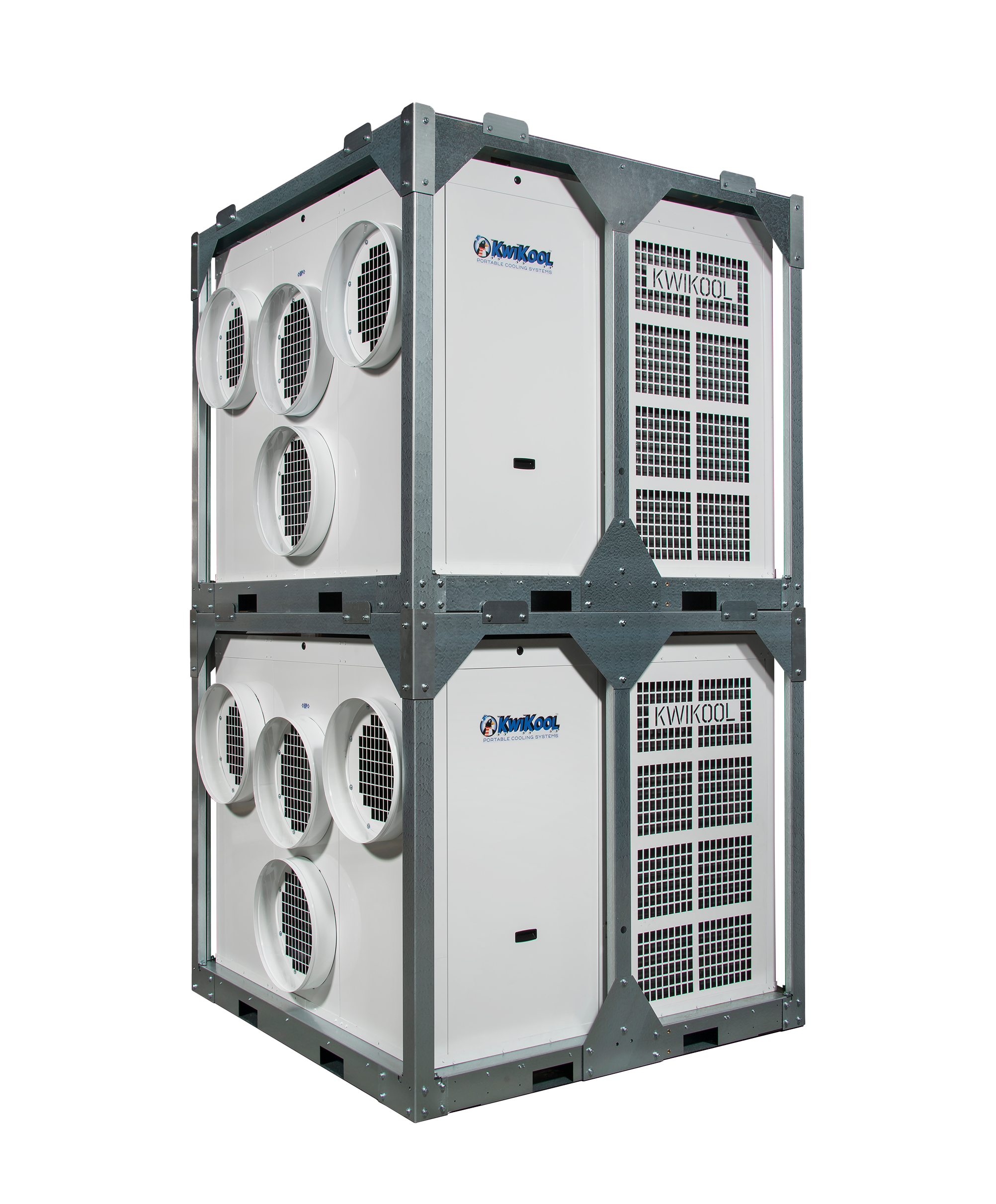

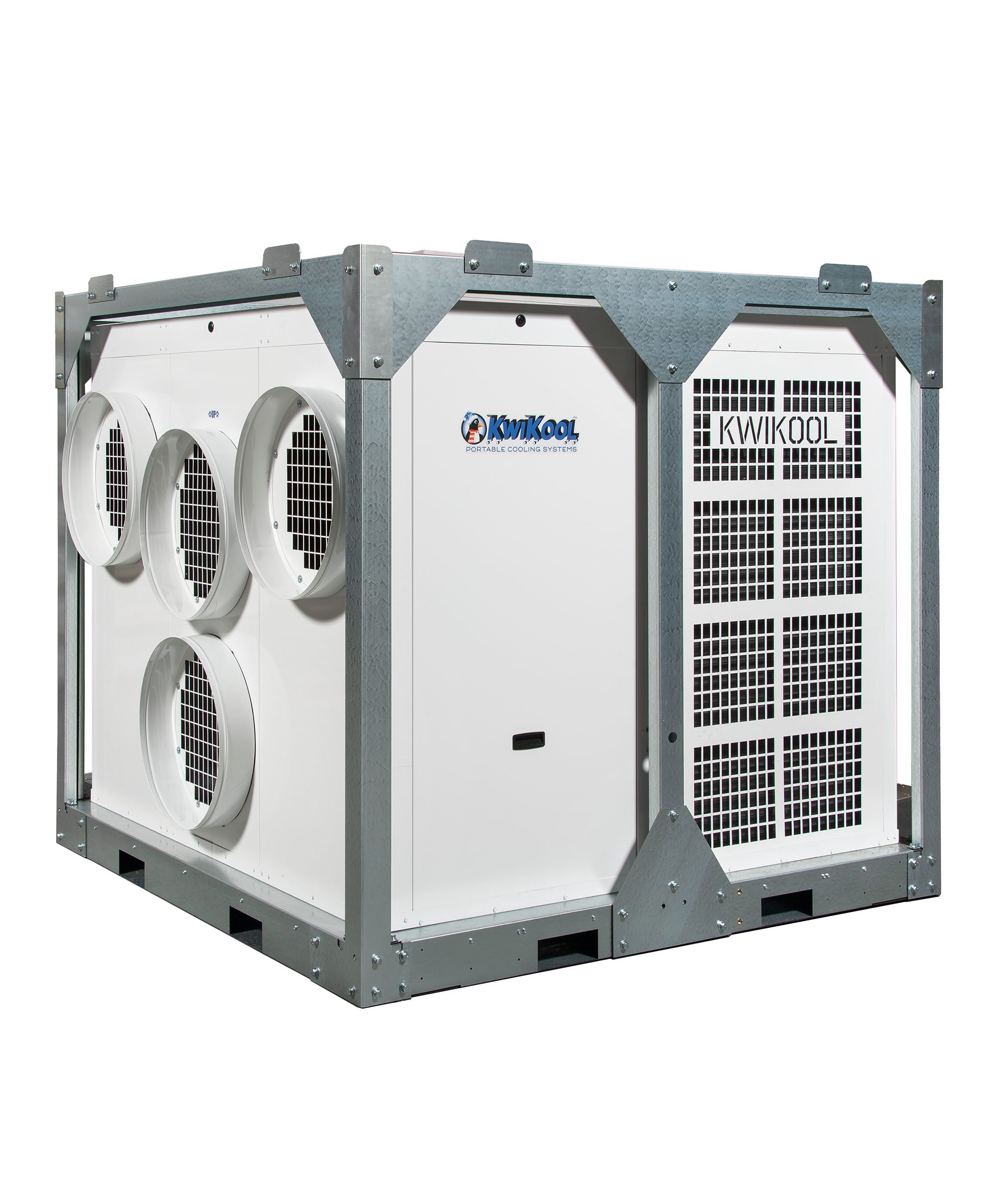

Optional: Stackable Frame, 48 kW Heat Strips, & 16 gauge flanges with Toggle Pressure Clamps

• 270,000 btuh capacities
• Compact yet Super Powerful
• HD 16 gauge insulated G90 galvanized and epoxy powder coated cabinet mounted to a 12 gauge Skid for optimum durability, efficiency, low maintenance and quiet operation
• HD Swivel and Locking Casters
• Narrow compact size allows the KPO to go through a standard doorway
• High Static Hyperdrive evaporator fans capable of running 100 foot of duct
• Wide Operating range of 60ºF-110ºF
• Low ambient condensing temperature controls utilizing Variable frequency drive technologies
• ETL and CETL listed to UL and CSA standards
• Multi-function Digital control with a large, easy-to-read LCD display
• Internal high lift condensate pumps for total condensate flexibility
• Condensate overflow protection
• Thermostatic Expansion Valve
• Heavy duty compressor with automatic restart and short cycle protection
• Motors and compressors have overload protection
• High-pressure safety with manual reset
• Low-pressure safety with automatic reset
• Automatic freeze protection using hot gas bypass and fan cycling
• Rifle tube coils for efficient heat transfer
• Sight glass with moisture indicator
• Filter dryer for Moisture protection
• Easy access Service Doors
• Shraeder service ports
• MADE IN USA

Cooling Capacity

• BTU/hr @ 95F at 60% RH: 270,000 (25-Ton)

Heating - Optional

• Heat Stips/BTU: 48kW/166,600

Compressor Data

• Compressor Type: Scroll x 2 each
• Operating Temperatures: 30-110 F 50%RH
• Refrigerant: R454B

Fan Data

• Evaporator
• Fan Type (Centrifugal): Hyper Drive x 4
• Air Flow (CFM): 9500
• Supply and Return Air Device: 2-20" flanges for supply duct and 2-20" flange for return duct
• Maximum Duct length: 75' each for supply and return
• Condenser
• Fan Type (Centrifugal): Belt Drive
• Air Flow (CFM): 14000
• Condenser Exhaust Flange: 20" x 2
• Condenser Duct Max. Length: 100" Per Flange
• Condenser fan speed control: Variable Frequency Drive

Electrical Data

• Power Supply (Volts): 460 Three Phase
• Current Consumption (Amps): 61.1
• Power Consumption (KW): 43.76
• Maximum Circuit Breaker (Amps): 100
• Recommended Breaker Size (Amps): 80
• Minimum Circuit Ampacity (Amps): 68.875
• Min./Max. Voltage: 420-500
• Power Quality Control: Internal Phase and Power Monitor
• Power Connection: Color Coded Camlocks

Construction

• Skid: 12 Gauge G90 Galvanized Steel with Epoxy Powdercoat
• Cabinet: 16 Gauge G90 Galvanized Steel with Epoxy Powdercoat

Dimensional Data

• Width x Depth x Height (Inches): 72" x 72" x 62" w/o Frame - 66" w/ Frame
• Weight (Lbs.): 2,030 w/o Frame - 2,400 w/ Frame
• Shipping Weight (Lbs.): 2,150 w/o Frame - 2,520 w/ Frame

Safety Device Data

• Compressor Overload: Internal
• Fan Motor Overload: Automatic Internal
• Evaporator Freeze Protection: Hot Gas Bypass
• High Pressure Switch: Manual Reset
• Low Pressure Switch: Automatic
• Compressor Short Cycle: Yes
• Automatic Restart: Yes
• Thermostat Type: Microprocessor
• Condensate Pump Overflow: Yes
• Internal Condensate Pump (high lift): Yes

• KPO Owners Manual
• KPO25-43-3 Specifications
• KPO Flyer

1 year from the date of purchase, KWIKOOL PORTABLE COOLING SYSTEMS. KwiKool warrants that its products shall be free from defects in material and workmanship. If equipment develops such defects in this period, it will be repaired at the rates and time established by us or replaced at our discretion. The effective warranty date is the ship date of the unit or the installation date if properly documented; but not to exceed (18) eighteen months of ship date.
