- Model: K8KK92BH
- Cooling capacity: 91,260 BTU/hr
- Voltage: 460/3
- Cooling Area (ft²): 2339
- Refrigerant: R454B

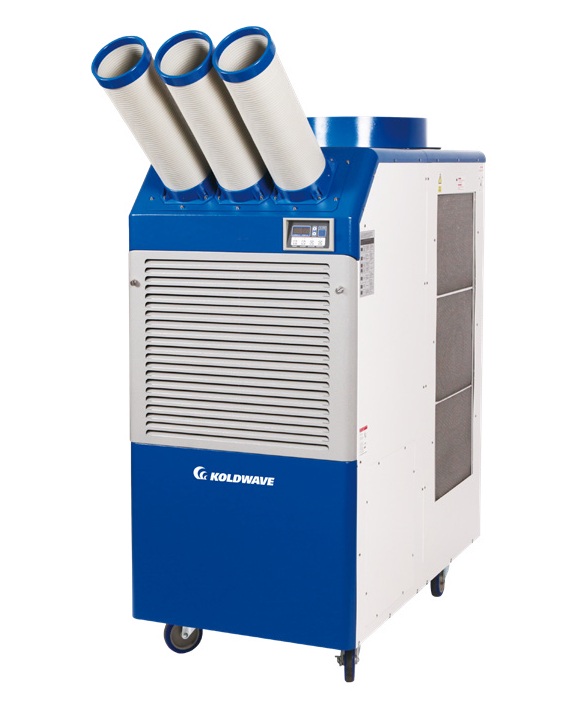

Koldwave Portable Air Conditioners feature spot cooling for large areas where cooling of the entire area is not practical. A dedicated spot cooling thermostat controls the unit in this application. These air conditioners can also be used in smaller areas for room cooling. A control panel provides ease of use and contains a self-diagnostic function and display, showing operating modes, room and set temperatures, and faults. If an abnormal operation occurs, a visual display of the fault is shown. Caster wheels are included for easy portability. Suitable applications include: a factory or work place, industrial kitchen, computer room, emergency cooling, etc.
- View more of our Koldwave Air Cooled Portable Air Conditioners
- In compliance with EPA requirements and worldwide trends,all Koldwave products are now made with low GWP refrigerants, identified by ASHRAE as class A2L. This model uses R454B refrigerant.
- 92,000 Btu Cooling Capacity
- Spot-Cool / Room-Cool Thermostat Settings
- Internally Insulated with Fiberglass Insulation
- Separate Direct Drive Fan Motors
- Digital Control Panel
- Condensate Pump with Overflow Protection
- 460V/3 Phase
- Directional Nozzles (3)
- Heavy Duty Twin Wheel Casters for Portability
- Self-Diagnostic System
- Off-Timer
- Washable Filters
- 20" Hot Air Exhaust Flange
Safety Devices
- Compressor Overload Protection
- Anti-freezing Thermistor
- Full Drain Tank Switch
- Automatic Restart (Power Interruption)
- Compressor Time Delay Program
- High Pressure Switch
- Model: K8KK92BH
- Cooling Capacity (BTU/hr): 91,260
- Power Supply (Voltage): 3 phases, 460V, 60Hz
- Power Consumption (W): 9,650
- Rated Current (A): 15.8
- EER Btu/Wh: 9.5
- Nema Plug: Terminal Type
- Power Cord Guage (AWG): 10
- Power Cord Length (ft.): 10 (3.05)
- No. of Cool Air Outlets Pcs: 3
- Condensate Tank: Auto Pump Included
- Ambient Temperature Range (°F): 64 - 113
- Setting Temperature (Room Cool Mode) (°F): 64 - 86
- Setting Temperature (Spot Cool Mode) (°F): 32 - 86
- Room Cool Application Area (ft²): 2339 (217)
- Refrigerant Type: R454B
- Design Pressure (High/Low) PSI (kPa): 450 / 250
- Indoor Air Flow (High/Low) (CFM): 2890 (82)
- Wheels pcs / diameter: 4 / 5 inch
- Hot Air Duct Diameter In. (mm): 20 (500)
- Maximum Duct Length ft (m): 100 (30)
Dimensional Data
- Product (Width x Depth x Height): 28.9" x 51.6" x 61"
- Weight (Net): 760.6 lbs.
- Shipping Dimensions (Width x Depth x Height): 30" x 76" x 54"
- Shipping Weight: 809 lbs.
- Free phone technical support
- 2-year parts-only warranty
- 3-year compressor warranty
