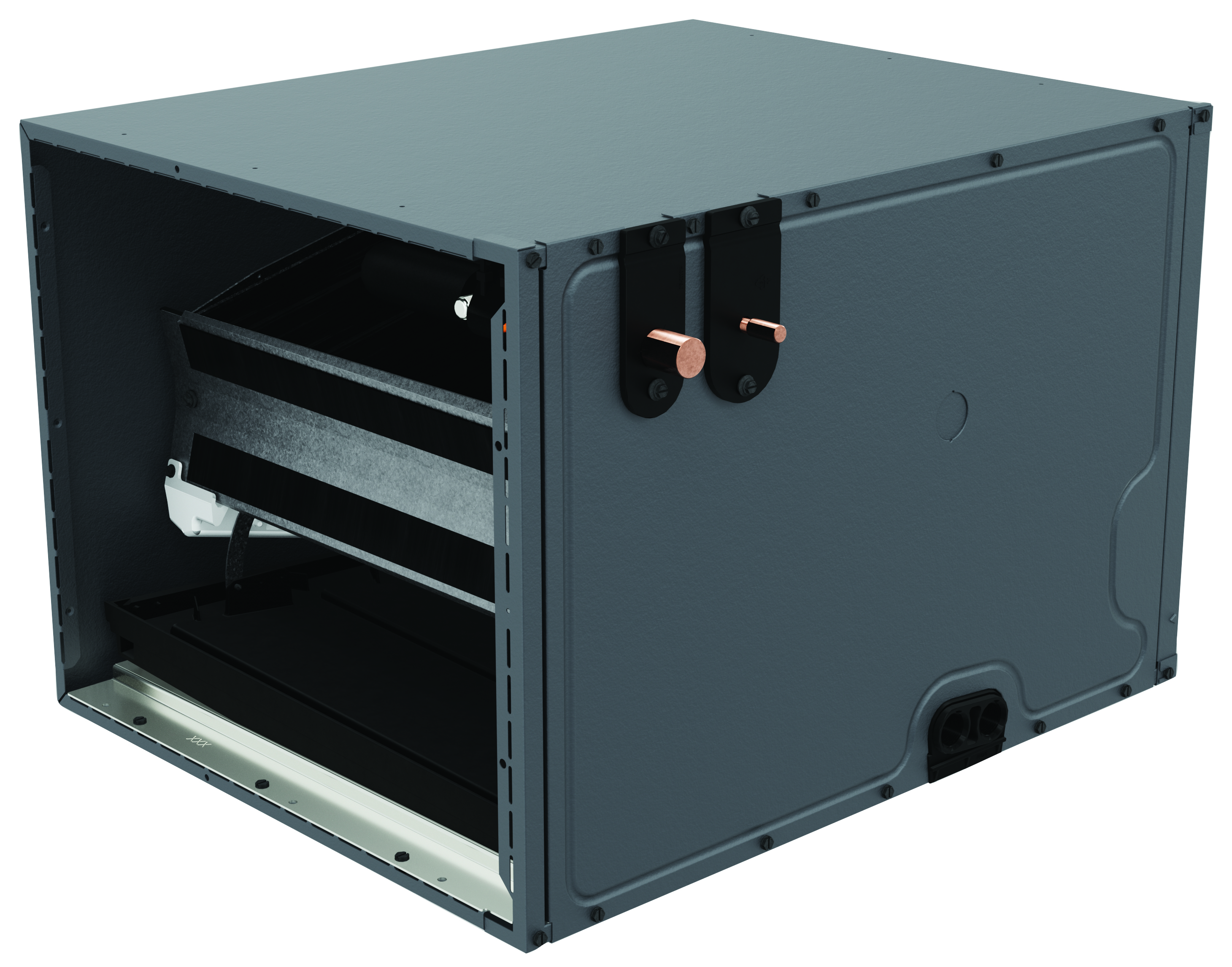

- Model: CHPTA1822A4
- Nominal Capacity Range: 1.5 Tons
- Cased Height: 22" Coil
- Nominal Width for Gas Furnace: 14" Width
- Refrigerant: R-410A only
Standard Features
- Internal factory-installed thermal expansion valves (TXV) for cooling and heat pump applications
- Rust-resistant high-temperature thermoplastic drain pans feature a low water-retention design
- All-aluminum evaporator coil
- Check flowrater for cooling and heat pump applications
- Rifled aluminum tubing and corrugated aluminum fin coil
- CHPTA models include a single front access panel
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Rust resistant, thermoplastic drain pans featuring a low water-retention design
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- UV-resistant drain pan
- AHRI certified; ETL listed
Benefits
- Cased Horizontal Cased coils with factory installed TXV are made for split system air conditioners and heat pumps.
Specifications
- Nominal Tons: 1.5
- Connection
- Liquid: 3/8"
- Suction: 3/4"
Cabinet Dimensions
- Product Height (in.): 14 in
- Product Width (in.): 22 in
- Product Depth (in.): 21 in
- Shipping Weight (lbs.): 48 lbs.
- 10 Years Parts Limited Warranty (ONLY VALID IF INSTALLATION DONE BY LICENSED CONTRACTOR)
